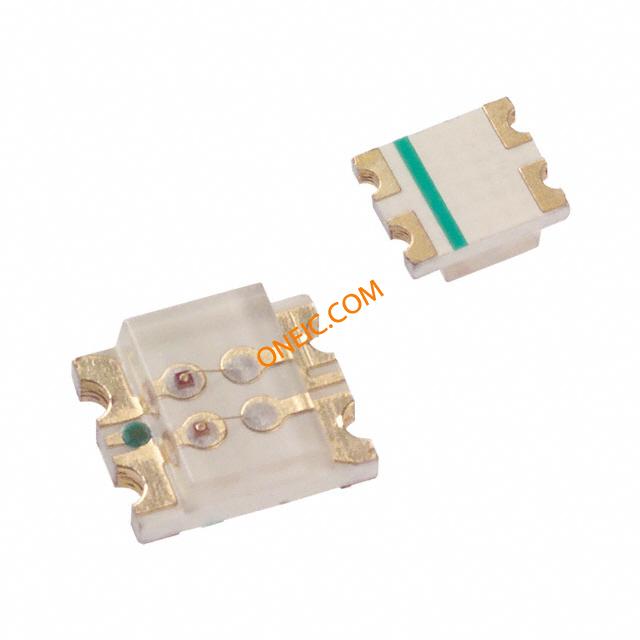

SML-LX1210IGC-TR
| 制造商 | |
| 描述 | Standard LEDs - SMD 1210 Green/Red LED DUAL RED/GREEN CLR 1210 LED; Red/Green; 10 mcd; 0.059 in. (Mounting Hole); 150 mA; 2.2 V; 5 V; 65 mW LED Bi-Color Green/Red 565nm/635nm 4-Pin SMD T/R LED, RED / GREEN, 2.7MM X 2MM LED, 2.7MM X 2MM, RED / GREEN, 1210 LED;Red/Green;10mcd;0.059in.(MountingHole);150mA;2.2V;5V;65mW |
| 分类 |
商业参数
| 其他名称 | 67-1361-6 | 产品类别 | Standard LEDs - SMD |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85414010 | ||
电气参数
| 灯类型 | :- | 光学尺寸 | 3.2 mm x 2.7 mm x 1.1 mm |
| 波长 | :R 635nm, G 565nm | 额定功率 | 65 mW |
| 视角 | 160 deg | 输出电流 | 20mA |
| 供电电压 | 2.2V Green, 2V Red | 峰值波长 | 565nm, 635nm |
| LED正向电流 | 20 mA | LED正向电压 | 2 V, 2.2 V |
| 毫坎德拉等级 | 10mcd Green, 10mcd Red | 主波长 | 635 nm, 565 nm |
机械参数
| 颜色 | Green, Red | 高度 | 1.10mm |
| 重量 | 0.045 | LED颜色 | :Red, Green |
| 包装方式 | Reel | 透镜颜色 | Water Clear |
| 透镜样式 | :Rectangular | 安装类型 | Surface Mount |
| 引脚数 | :4 | 封装形式 | 1210 |
| 透镜样式/尺寸 | Rectangle with Flat Top, 2.7mm x 2mm | 材料表面处理 | :MSL 2 - 1 year |
| 尺寸/外形 | 3.20mm L x 2.70mm W | 照明颜色 | Red, Green |
产品信息
| 透镜类型 | Clear | ||
环境参数
| 工作温度 | + 85 C | 光通量 @ 电流/温度 | 10 mcd |
