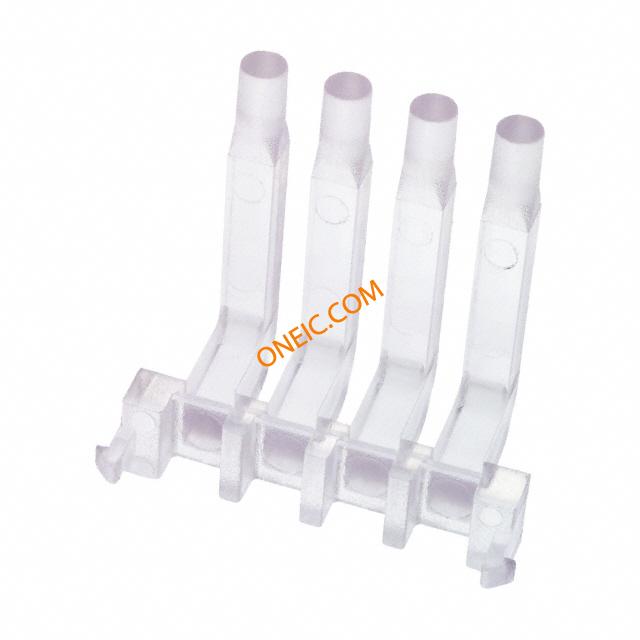

LPF-C041303S
| 制造商 | |
| 描述 | LED Light Pipes TransBrite RA Quad SMT Light Pipe LIGHT PIPE 2.8MM 4POS RA SMD Light Pipe; 0.939 in.; Clear Polycarbonate; Stackable Right Angle; 0.229 in. LIGHT PIPE, QUAD, ROUND, PCB LightPipe;0.939in.;ClearPolycarbonate;StackableRightAngle;0.229in. |
| 分类 |
商业参数
| 产品 | Light Pipes | 标准包装规格 | 250 |
| 产品类别 | LED Light Pipes | 标准包装数量 | 250 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 90019000 | ||
电气参数

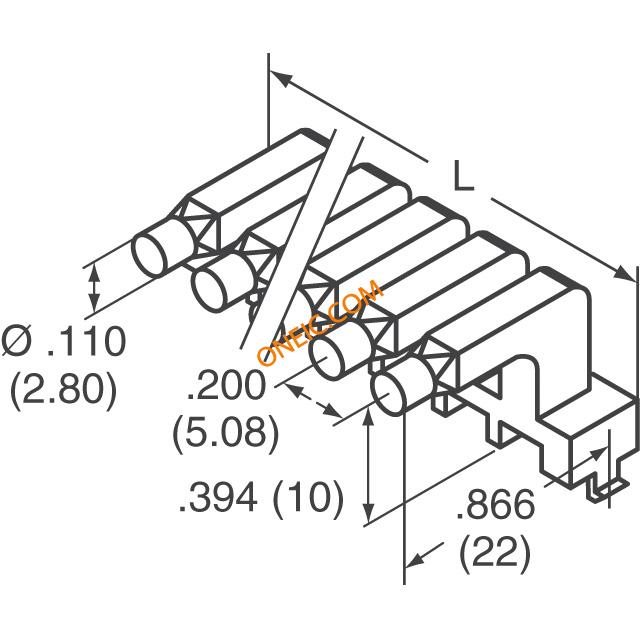

| 光学尺寸 | 2.8 mm | ||
机械参数
| 颜色 | Clear | 宽度 | 0.229in. |
| 高度 | 0.394in. | 长度 | :22mm |
| 重量 | 0.00045 | 材料（通用） | Polycarbonate (PC) |
| 包装方式 | Bulk | 透镜颜色 | :Transparent |
| 安装类型 | Board Mount, Snap-In, Right Angle | 行程角度 | StackableRightAngle |
| 安装样式 | SMD/SMT | 透镜样式/尺寸 | Round with Flat Top, 2.8mm |
| 总长度 | 23.84 mm | 主要材料 | LightPipes |
| 位数 | :4 | 光学边缘厚度 | :Circular |
产品信息
| 类型 | Rigid | 系列 | SML-LX23Series |
| 配置 | 4 wide | 应用细节 | Frontpanelandfaultindicator,lighttransporter,legendbacklight |
