点击放大查看
37012000410
| 制造商 | |
| 描述 | Fuses 250V IEC LBC SL 2A TR5 Fuse Subminiature Fast Acting 2A 250V Radial 8.5 X 8mm Bulk FUSE FAST 250VAC 2A RADIAL Fuses with Leads (Through Hole) 250V IEC LBC SL 2A TR5 FUSE, PCB, 2A, 250V, FAST ACTING Fuse: fuse; quick blow; 2A; 250VAC; TR5; copper; Package: bag; tinned Radial fuse 2 A fast-blow 370 / TR5®, 37012000410, Littelfuse |
| 分类 |
商业参数
| 产品 | Specialty Fuses | 产品类别 | Fuses |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85361010 | 认证机构 | CCC, cULus, PSE/JET, SEMKO, VDE |
电气参数
| 指示器 | Without Indicator | 熔断I²t | 0.98 |
| 响应时间 | Fast | 额定电压 | 250 V |
| 中断输出 | 35 Amps at 250 VoltsAC | 直流冷态电阻 | 0.0325 Ohm |
| 额定交流电压 | :250V | 最大额定电流 | 2 A |
| 保险丝特性 | quick blow | 最小输入电压 | 250 |
| 熔断特性 | :Fast Acting | 最小供电电压 | 50A |
| 最大功耗 | 0.5 | ||
机械参数
| 高度 | 8(Max) | 长度 | :8mm |
| 重量 | 0 | 直径 | 8.5 mm |
| 包装方式 | Bulk | 基体材料 | Thermoplastic |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | 8 mm | 触头材料 | copper |
| 包装数量 | 1000 | 尺寸/外形 | 8 mm L x 8.5 mm D |
| 端接样式 | Radial | 触点数 | 2 |
| 供应商器件封装 | Leaded Fuses | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1000 | 类型 | PCB Mount Fuse |
| 系列 | 370 | 保险丝尺寸 | TR5 |
| 保险丝类型 | Fast Blow | 产品子类型 | PCB Mount Fuse |
| 单元数量 | 1000 | 其他规格 | 85mV |
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 40 C to + 85 C |
文档与媒体
相关型号
56000001009
Littelfuse
Fuse Holders 6.3A/1.6W/4.3mm TR5/TE5 Holder Holder round for TR5/TE5 RM 5mm FUSE HOLDER RADIAL 250V 6.3A PCB TR5/TE5 Fuseholder 250V 6.3A Fuse Holder Through Hole Bulk FUSE HOLDER, PCB, TR5 Fuse holder; miniature fuses; Mounting: PCB; TE5,TR5; 6.3A; 250V Micro fuse holder 250 VAC/DC, 56000001009, Littelfuse Littelfuse 6.3A PCB 固定熔断器座 , 适用于超小型熔断器, 250 V Fuse Holder 6.3A/1.6W/4.3mm TR5/TE5 Holder
56000001319
Littelfuse
Fuse Holders 6.3A/1.6W/3mm TR5/TE5 Holder FUSE HOLDER RADIAL 250V 6.3A PCB Fuse Holder 6.3A 250V Pin Through Hole FUSE HOLDER ACSTR5/TE5FUSEHLDR6.3A/1.6W/3MM Littelfuse 560 系列 6.3A PCB 固定熔断器座 , 适用于带径向引线 (TR5/TE5)熔断器, 250 V 交流/直流 Fuse Holder 6.3A/1.6W/3mm TR5/TE5 Holder
57000000001
Littelfuse
Fuse Holders ACS HOLDER 570 250V Fuse Holder 6.3A 250V Quick Connect Panel Mount Bulk FUSE HLDR RAD 250V 6.3A PNL MNT FUSE HOLDER, TR5, PANEL MOUNT Fuse holder; miniature fuses; TE5,TR5; 6.3A; 250V; -40÷85°C Micro fuse holder 250 VAC/DC, 57000000001, Littelfuse Fuse Holder ACS HOLDER 570 250V
57100000001
Littelfuse
Fuse Holders ACS HOLDER 571 250V HolderTR5 RM7,62 High 11,5mm FUSE HOLDER RADIAL 250V 6.3A PCB TR5/TE5 Fuseholder 250V 6.3A Fuse Holder 6.3A 250V Pin Through Hole Bulk FUSE HOLDER, TR5, PCB MOUNT FUSE HOLDER, PCB MOUNT Fuse holder; miniature fuses; Mounting: PCB; TE5,TR5; 6.3A; 250V Micro fuse holder 250 VAC/DC, 57100000001, Littelfuse Littelfuse 6.3A 手动 帽盖 PCB 固定熔断器座 , 适用于超小型熔断器, 250 V Fuse Holder ACS HOLDER 571 250V
56200001009
Littelfuse
Fuse Holders TR5/TE5 F/HOLDER Fuse Holder 6.3A 250V Pin Through Hole Bulk FUSE HOLDER RADIAL 250V 6.3A PCB FUSE HOLDER, PCB MOUNT CSTR5/TE5SMALLHOLDER Littelfuse 562 系列 6.3A PCB 固定熔断器座 , 适用于带径向引线 (TR5/TE5)熔断器, 250 V 交流/直流 Fuse Holder TR5/TE5 F/HOLDER

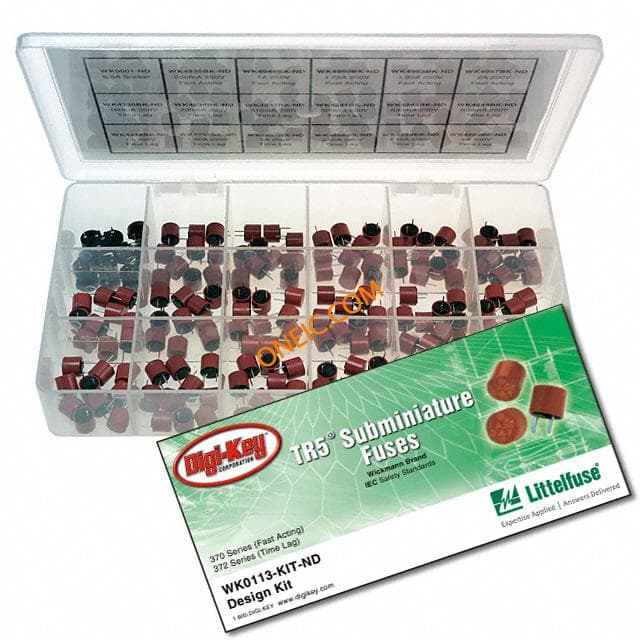

WK0113-KIT
