点击放大查看

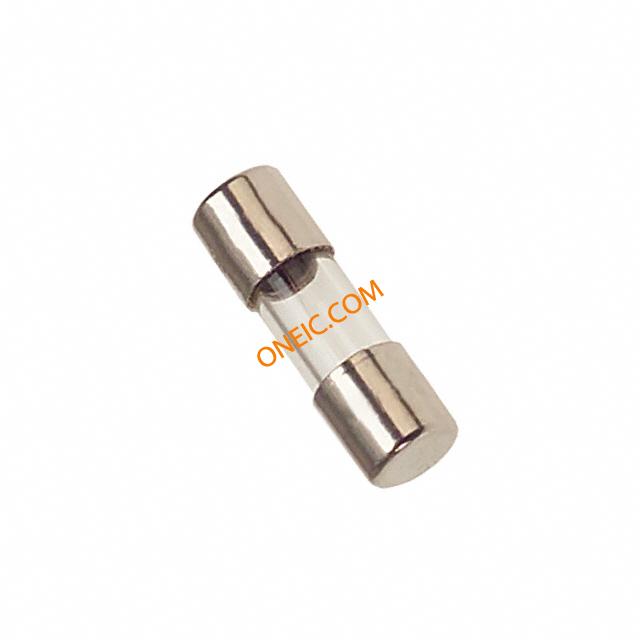

0225003.HXP
| 制造商 | |
| 描述 | Fuses 250V 3A Fast Acting Fuse Subminiature Fast Acting 3A 250V Holder Cartridge 5 X 15mm Glass Bulk FUSE 250V FA 2AG Pb-FREE 3A FUSE 250V FAST 2AG 3A CART Cartridge Fuses 250V 3A Fast Acting FUSE, CARTRIDGE, 3A, 5X15MM, FAST ACTING Fuse;Cylinder;FastActing;3A;Sz2AG;Supplemental;Dims0.177x0.57";Glass;250VAC Miniature fuse 3 A fast-blow 225 / 2AG, 0225003.HXP, Littelfuse |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Specialty Fuses |
| 单位包装 | 0 | 产品类别 | Fuses |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85361010 | 认证机构 | CE, CSA, PSE, UL |
电气参数
| 指示器 | Without Indicator | 电阻 | 0.031 Ohms |
| 熔断I²t | 4.62 | 响应时间 | Fast |
| 额定电压 | 250 V | 中断输出 | 10 kA at 125 VAC / 100 A at 250 VAC |
| 直流冷态电阻 | 0.0317 Ohm | 额定交流电压 | :250V |
| 直流电阻（DCR） | 0.031Ohms | 最大额定电流 | 3 A |
| 最小输入电压 | 250 | 熔断特性 | :Fast Acting |
| 最小供电电压 | 100A AC, 10000A DC | ||
机械参数
| 尺寸 | 2AG | 重量 | 0.002 |
| 直径 | 4.5 mm | 包装方式 | Bulk |
| 端接方式 | Cartridge | 基体材料 | Glass |
| 安装类型 | Holder | 安装样式 | Holder |
| 封装形式 | 14.48 mm | 本体材料 | Glass |
| 总长度 | 14.48 | 刀片材料 | Glass |
| 主要材料 | Cylinder | 尺寸/外形 | 14.48 mm L x 4.5 mm D |
| 端接样式 | Clip | 触点数 | 2 |
| 供应商器件封装 | Cartridge Fuses | ||
产品信息
| 类型 | Glass Fuse | 类别 | Supplemental |
| 系列 | 225 | 保险丝尺寸 | 2AG (5 mm x 15 mm) |
| 保险丝类型 | Fast Blow | 制造商全称 | 225Series |
| 产品子类型 | Glass Fuse | ||
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 55 C to + 125 C |
