0218.315HXP
| 制造商 | |
| 描述 | Fuse Miniature Slow Blow Acting 0.315A 250V Holder Cartridge 5 X 20mm Glass Bulk FUSE 5X20MM H PACK (P) FUSE 250V IEC SLO 5X20MM .315A FUSE, CARTRIDGE, 315mA, 5X20MM, SLO BLO Fuse;Cylinder;SlowBlow/TimeLag;0.315A;Dims5x20mm;Glass;Cartridge;250VAC Fuse: fuse; time-lag; glass; 0.315A; 250VAC; 5x20mm; brass |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 0 |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85361010 | 抗辐射加固 | No |
| 认证机构 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | ||
电气参数
| 熔断I²t | 1.11 | 额定功率 | 1.6 W |
| 响应时间 | Slow | 额定电压 | 250V |
| 直流冷态电阻 | 0.8475 Ohm | 额定交流电压 | 250V |
| 直流电阻（DCR） | 0.848Ohms | 最大额定电流 | 315mA |
| 保险丝特性 | time-lag | 最小输入电压 | 250 |
| 熔断特性 | :Slow Blow | 最小供电电压 | 35A |
| 最大功耗 | 1.6(Typ) | ||
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.002 | 直径 | 5.2 |
| 包装方式 | Bulk | 端接方式 | Cartridge |
| 安装类型 | Holder | 安装样式 | Clip |
| 封装形式 | 5mm x 20mm | 本体材料 | Glass |
| 触头材料 | brass | 壳体材料 | Glass |
| 总长度 | 20 mm | 刀片材料 | Glass |
| 包装数量 | 100 | 主要材料 | Cylinder |
| 尺寸/外形 | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | 触点数 | 2 |
| 位数 | 2 | 触点材料 - 镀层 | nickel plated |
产品信息
| SPG | 100 | 类型 | Miniature |
| 类别 | Supplemental | 系列 | :218 |
| 保险丝尺寸 | :5mm x 20mm | 保险丝类型 | Cartridge, Glass |
| 制造商全称 | 218PSeries | 单元数量 | 1 |
| 其他规格 | 1V | ||
环境参数
| 必须动作（继电器术语，指必须吸合） | Slow Blow | 工作温度 | -55°C ~ 125°C |
文档与媒体
相关型号
05200101Z
Littelfuse
Fuse Holders 5x20mm PCB Mount Fuse Block Bulk ACS OMNI-BLOK 5X20MM PCB MT FUSE BLOK CARTRIDGE 300V 10A PCB FUSEHOLDER, 2X20MM ACSOMNI-BLOK5X20MMPCBMT Fuse Holder 5x20mm PCB Mount
05200002H
Littelfuse
Fuse Holders 5x20mm PCB Mount FUSEHOLDER BLOCK-P.C. BOARD 5 FUSEHOLDER BLOCK-P.C. BOARD 5 X 20 FUSE BLOCK CART 250V 6.3A PCB 05200002H FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm PCB Mount
05200004Z
Littelfuse
Fuse Holders 5x20mm Sldr Termo Fuse Block ACS OMNI-BLOK 5X20MM SLDR TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm Sldr Termo
00300210N
Littelfuse
Fuse Clips Clip 5 mm Nickel Plated Fuse Clip 10A 250VDC/250VAC Pin Through Hole ACS 5mm PCB FUSE Clip FUSE CLIP CARTRIDGE 10A PCB
02860677H
Littelfuse
Fuse Holders 5x20MM Fliptop Shock Safe Fuse Holder Bulk ACS FLIP-TOP SHOCK-SAFE 5X20MMFHLDR FUSE HLDR CART 250V 10A PNL MNT FUSE HOLDER, 5 X 20MM, PANEL MOUNT Fuse holder; tube fuses; 5x20mm; 10A; 250V; Mounting: on panel Fuse Holder 5x20MM Fliptop Shock Safe
05200003Z
Littelfuse
Fuse Holders 5x20mm QC Term ACS OMNI-BLOK 5X20MM QC TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM OMNI-BLOK5X20MMQCTERM
01110005MR
Littelfuse
Fuse Clips Clip 5mm Nickel Plated Fuse Clip 250VAC Radial Through Hole Ammo Pack ACS FUSE CLIP 5 MM TIN PLATED FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse clips; tube fuses; Mounting: THT; Pitch:5mm; 10A Clip 5x20 5mm Tin Plated
64900001039
Littelfuse
Fuse Holders PC MOUNT 5 X 20 MM FUSEHOLDERS FUSE HOLDER 5x20 BLOCK thermopl FUSE BLOCK CART 250V 6.3A PCB 5x20mm Fuseholder 6.3A 250V FUSE HOLDER, 5 X 20MM, PCB MOUNT ACSBLOCKHOLDERFOR5X20BIGBOX Littelfuse 6.3A PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder PC MOUNT 5 X 20 MM
01000056Z
Littelfuse
Fuse Clips ACS PC 5MM CLIP BRASS/TIN-PLTD Fuse Clip 10A Pin Through Hole Bulk ACS PC 5MM FUSE CLIP BRASS/TIN-PLTD FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT FuseClip;PanelMount;20A(Max.) ACSPC5MMFUSECLIPBRASS/TIN-PLTD Littelfuse 100 系列 弹簧，黄铜 PCB安装 熔断器夹 , 用于5 x 20mm 管式熔断器 ACS PC CLIP for 5x20 BRASS/TIN
01000056H
Littelfuse
Fuse Clips PC 5mm Clip Brass & Tin Plated Fuse Clip Through Hole Bulk FUSE CLIP CARTRIDGE 250V 10A PCB

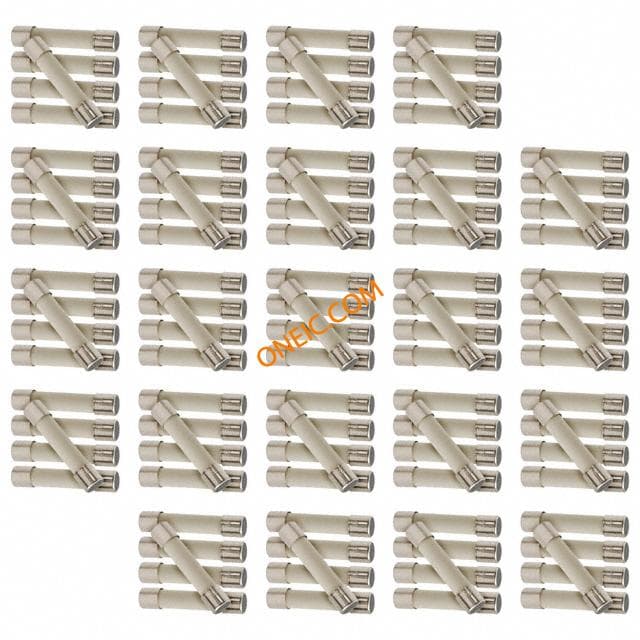

218P-KIT
