点击放大查看

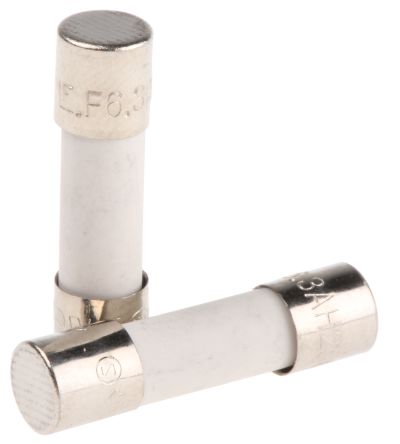

021606.3HXP
| 制造商 | |
| 描述 | Fuses 250V 6.3A Fast Acting Fuse Miniature Fast Acting 6.3A 250V Holder Cartridge 5 X 20mm Ceramic Bulk FUSE FAST 250VAC 6.3A 5X20 FUSE, CARTRIDGE, 6.3A, 5X20MM, FAST ACT FUSE5X20MMHPACK(P) Fuse: fuse; quick blow; ceramic; 6.3A; 250VAC; 5x20mm Littelfuse F熔断速度 6.3A 管式熔断器 , 5 x 20mm |
| 分类 |
商业参数
| 产品 | Specialty Fuses | 产品类别 | Fuses |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85361010 | 认证机构 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE |
电气参数
| 指示器 | Without Indicator | 电阻 | 14 mOhms |
| 熔断I²t | 56.43 | 响应时间 | Fast |
| 额定电压 | 250 V | 中断输出 | 1.5 kA at 250 VAC |
| 直流冷态电阻 | 0.0137 Ohm | 额定交流电压 | :250V |
| 最大额定电流 | 6.3 A | 保险丝特性 | quick blow |
| 最小输入电压 | 250 | 熔断特性 | :Fast Acting |
| 最小供电电压 | 1500A | 最大功耗 | 4(Typ) |
机械参数
| 重量 | 0.002 | 直径 | 5.2 mm |
| 包装方式 | Bulk | 基体材料 | Ceramic |
| 安装类型 | Holder | 安装样式 | Holder |
| 封装形式 | 20 mm | 总长度 | 20 |
| 刀片材料 | Ceramic | 包装数量 | 100 |
| 尺寸/外形 | 20 mm L x 5.2 mm D | 端接样式 | Clip |
| 触点数 | 2 | 供应商器件封装 | Cartridge Fuses |
产品信息
| SPG | 100 | 类型 | Ceramic Fuse |
| 系列 | 216 | 保险丝尺寸 | 5 mm x 20 mm |
| 保险丝类型 | Fast Blow | 产品子类型 | Ceramic Fuse |
| 单元数量 | 1 | 其他规格 | 0.2V |
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 55 C to + 125 C |
文档与媒体
相关型号
05200101Z
Littelfuse
Fuse Holders 5x20mm PCB Mount Fuse Block Bulk ACS OMNI-BLOK 5X20MM PCB MT FUSE BLOK CARTRIDGE 300V 10A PCB FUSEHOLDER, 2X20MM ACSOMNI-BLOK5X20MMPCBMT Fuse Holder 5x20mm PCB Mount
05200002H
Littelfuse
Fuse Holders 5x20mm PCB Mount FUSEHOLDER BLOCK-P.C. BOARD 5 FUSEHOLDER BLOCK-P.C. BOARD 5 X 20 FUSE BLOCK CART 250V 6.3A PCB 05200002H FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm PCB Mount
05200004Z
Littelfuse
Fuse Holders 5x20mm Sldr Termo Fuse Block ACS OMNI-BLOK 5X20MM SLDR TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm Sldr Termo
00300210N
Littelfuse
Fuse Clips Clip 5 mm Nickel Plated Fuse Clip 10A 250VDC/250VAC Pin Through Hole ACS 5mm PCB FUSE Clip FUSE CLIP CARTRIDGE 10A PCB
02860677H
Littelfuse
Fuse Holders 5x20MM Fliptop Shock Safe Fuse Holder Bulk ACS FLIP-TOP SHOCK-SAFE 5X20MMFHLDR FUSE HLDR CART 250V 10A PNL MNT FUSE HOLDER, 5 X 20MM, PANEL MOUNT Fuse holder; tube fuses; 5x20mm; 10A; 250V; Mounting: on panel Fuse Holder 5x20MM Fliptop Shock Safe
05200003Z
Littelfuse
Fuse Holders 5x20mm QC Term ACS OMNI-BLOK 5X20MM QC TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM OMNI-BLOK5X20MMQCTERM
01110005MR
Littelfuse
Fuse Clips Clip 5mm Nickel Plated Fuse Clip 250VAC Radial Through Hole Ammo Pack ACS FUSE CLIP 5 MM TIN PLATED FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse clips; tube fuses; Mounting: THT; Pitch:5mm; 10A Clip 5x20 5mm Tin Plated
64900001039
Littelfuse
Fuse Holders PC MOUNT 5 X 20 MM FUSEHOLDERS FUSE HOLDER 5x20 BLOCK thermopl FUSE BLOCK CART 250V 6.3A PCB 5x20mm Fuseholder 6.3A 250V FUSE HOLDER, 5 X 20MM, PCB MOUNT ACSBLOCKHOLDERFOR5X20BIGBOX Littelfuse 6.3A PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder PC MOUNT 5 X 20 MM
01000056Z
Littelfuse
Fuse Clips ACS PC 5MM CLIP BRASS/TIN-PLTD Fuse Clip 10A Pin Through Hole Bulk ACS PC 5MM FUSE CLIP BRASS/TIN-PLTD FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT FuseClip;PanelMount;20A(Max.) ACSPC5MMFUSECLIPBRASS/TIN-PLTD Littelfuse 100 系列 弹簧，黄铜 PCB安装 熔断器夹 , 用于5 x 20mm 管式熔断器 ACS PC CLIP for 5x20 BRASS/TIN
01000056H
Littelfuse
Fuse Clips PC 5mm Clip Brass & Tin Plated Fuse Clip Through Hole Bulk FUSE CLIP CARTRIDGE 250V 10A PCB

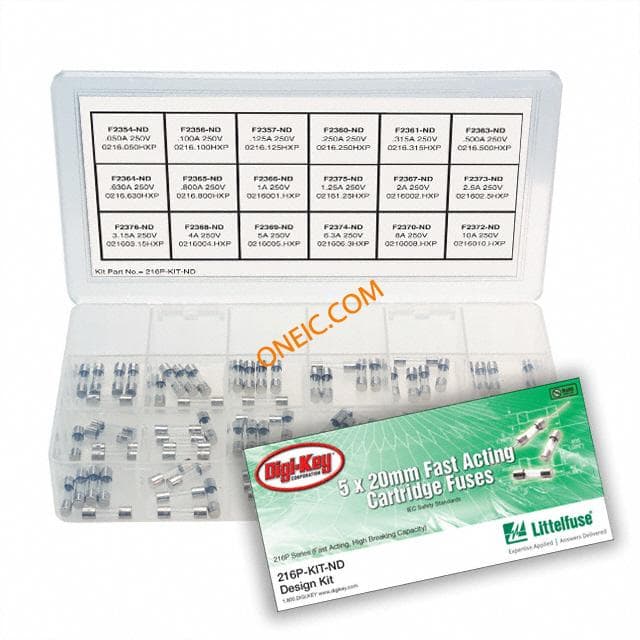

216P-KIT
