点击放大查看

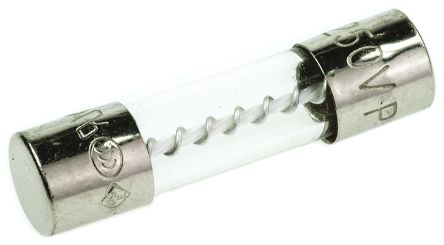

0213005.MXP
| 制造商 | |
| 描述 | Fuses 250V 5A Slo-Blo Fuse Miniature Slow Blow Acting 5A 250V Holder Cartridge 5 X 20mm Glass Bulk FUSE 5x20 T LBC 5A/250V (P) FUSE 250V IEC SLO 5X20MM 5A Anti surge T LBC min fuse,5A 5x20mm Cartridge Fuses 250V 5A Slo-Blo FUSE, ANTISURGE, 5A 20MMFUSEA/S5A Fuse: fuse; time-lag; glass; 5A; 250VAC; 5x20mm; brass; Package: bag Littelfuse T熔断速度 5A 管式熔断器 , 5 x 20mm 5A 250V slow 5x20 glass |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Specialty Fuses |
| 单位包装 | 0 | 产品类别 | Fuses |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85361010 |
| 认证机构 | BSI, CCC, CE, CSA, PSE, SEMKO, UL, VDE | ||
电气参数
| 指示器 | Without Indicator | 电阻 | 11 mOhms |
| 熔断I²t | 314 | 额定功率 | 1.6W |
| 响应时间 | Slow | 额定电压 | 250 V |
| 最大频率 | T | 中断输出 | 50 Amps at 250 VoltsAC |
| 供电电压 | :IEC 60127-2 Sheet 3 | 直流冷态电阻 | 0.0116 Ohm |
| 最大额定电流 | 5 A | 保险丝特性 | time-lag |
| 最小输入电压 | 50 A | 熔断特性 | :Time Delay |
| 最小供电电压 | 50A | 最大功耗 | 1.6(Typ) |
机械参数
| 高度 | 20mm | 重量 | 0.0001 |
| 直径 | 5.2 mm | 包装方式 | Bulk |
| 基体材料 | Glass | 安装类型 | Holder |
| 安装样式 | Holder | 封装形式 | 20 mm |
| 磁芯材质 | :Glass | 触头材料 | brass |
| 总长度 | 20 | 刀片材料 | Glass |
| 包装数量 | 1000 | 尺寸/外形 | 20 mm L x 5.2 mm D |
| 端接样式 | Clip | 触点数 | 2 |
| 供应商器件封装 | Cartridge Fuses | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | :Glass | ||
产品信息
| SPG | 1000 | 类型 | Axial Lead and Cartridge Fuse |
| 能量 | 314A2s | 系列 | 213 |
| 保险丝尺寸 | 5 mm x 20 mm | 保险丝类型 | Time Delay / Slow Blow |
| 产品子类型 | Glass Fuse | 单元数量 | 1000 |
| 其他规格 | 100mV | ||
环境参数
| 温度 | 250°C / 5 s | 必须动作（继电器术语，指必须吸合） | Slow Blow |
| 工作温度 | - 55 C to + 125 C | ||
