点击放大查看

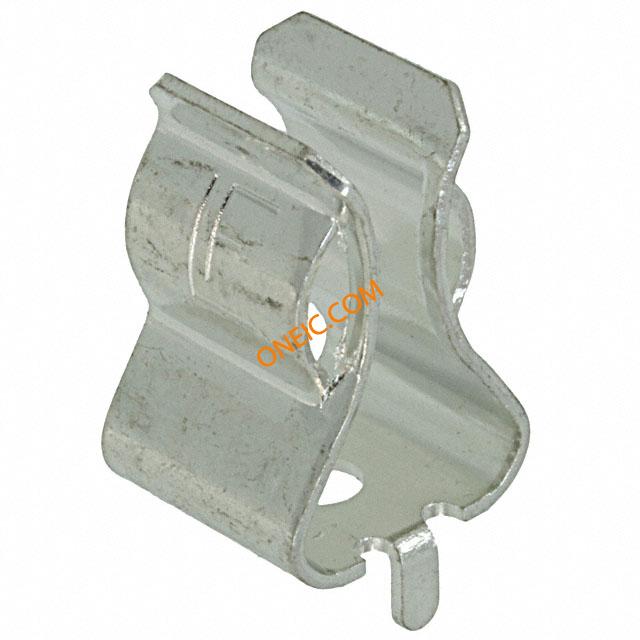

01250003H
| 制造商 | |
| 描述 | Fuse Clips Midget Ear Clip 13/32 Dia Tin Plated Fuse Clip 15A 250VAC Pin Through Hole Midget CLIP SPF/KLKD FUSE CLIP CARTRIDGE 250V 30A PCB FUSE CLIPS, PCB, FOR 10.3MM FUSES |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Fuse Clips |
| 单位包装 | 100 | 产品类别 | Fuse Clips |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85361010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | :UL Recognised | ||
电气参数
| 电压 | 250V | 额定电压 | 250 V |
| 最大额定电流 | 30 A | 每极负载侧连接方式 | :Pin |
机械参数
| 深度 | 11.1 | 宽度 | 12.4 mm |
| 高度 | 18.7 mm | 长度 | 11.1 mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 方向 | Horizontal | 端接方式 | THT |
| 高度（最大） | 18.7 | 基体材料 | Beryllium Copper |
| 安装类型 | PCB | 端子类型 | :Pin |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 保险丝座类型 | Clip | 锥体材料 | Cu |
| 触头材料 | Beryllium Copper | 总长度 | :11.4mm |
| 端接样式 | PC Pin | ||
产品信息
| 类型 | Rivet/Eyelet | 系列 | 125 |
| 保险丝尺寸 | Midget | 保险丝类型 | MIDGET |
| 匹配码 | FUH10X38CLIPTHT | 标准交期 | 18 weeks |
| 电路数 | 1 | 附带电池数量 | :1 |
| 适用产品/相关产品 | 13/32 in (5AG) (Midget) Diameter | ||
