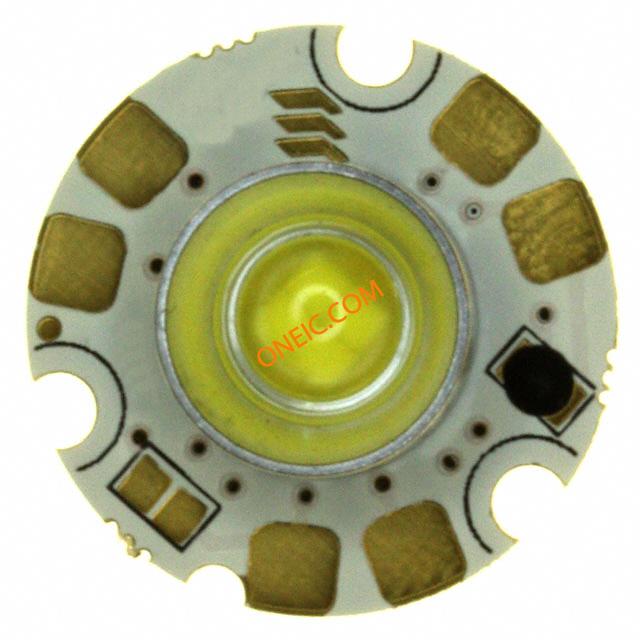

NT-45D0-0447
| 制造商 | Lighting Science Group Corporation |
| 描述 | High Power LEDs - White Daylight White 4700K 70 Deg Reflector LIGHT ENGINE ATLAS DAYLIGHT WHT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Lamina | 产品类别 | High Power LEDs - White |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 6.6V | 波长 | 4700K |
| 光通量 | 164 lm | 视角 | 108 deg |
| 输出电流 | 700mA | 驱动电路 | Yes |
| LED正向电流 | 700 mA | LED正向电压 | 6.6 V |
| 最大额定电流 | 1.05A | ||
机械参数
| 颜色 | White, Neutral | 包装方式 | Tray |
| 灯颜色 | 4700 K | 连接器用途 | No |
| 照明颜色 | Neutral White | ||
产品信息
| 配置 | Star | ||
环境参数
| 机械寿命 | Obsolete | 光通量 @ 电流/温度 | 164 lm |
