点击放大查看

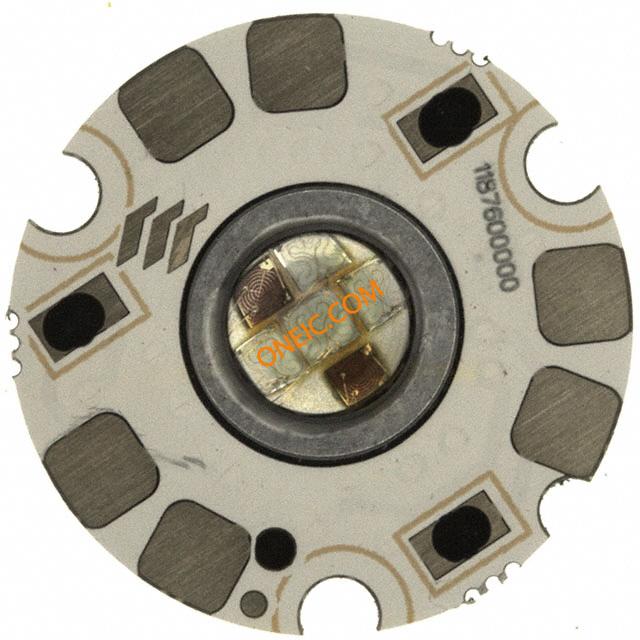

NT-43F0-0424
| 制造商 | Lighting Science Group Corporation |
| 描述 | High Power LEDs - Multi-Color RGB Atlas Series Full Color LED ARRAY RED/GREEN/BLUE |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Lamina | 其他名称 | 521-1035-1 |
| 产品类别 | High Power LEDs - Multi-Color | 标准包装数量 | 1 |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数

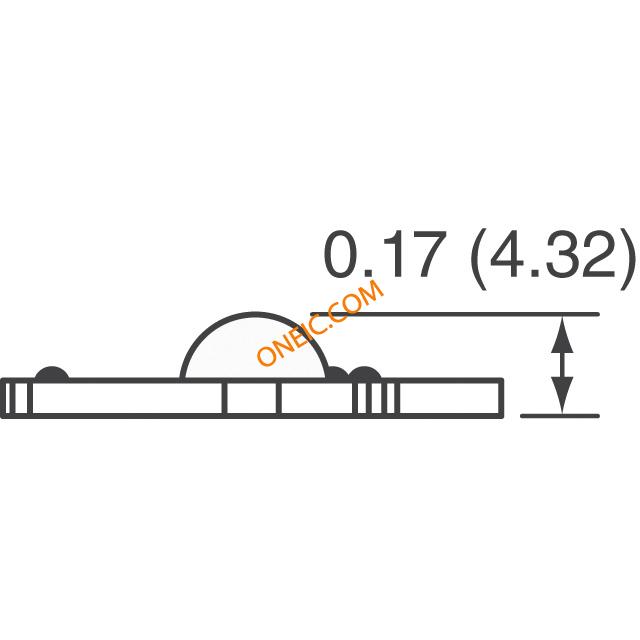

| 电压 | 4.8V Red, 7.4V Green, 7.9V Blue | 光学尺寸 | 20.32 mm x 4.32 mm |
| 波长 | 624nm, 525nm, 465nm | 光通量 | 69 lm, 109 lm, 29 lm |
| 额定功率 | 2.8 W | 视角 | 116 deg, 113 deg, 132 deg |
| 输出电流 | 3 x 350mA | 驱动电路 | Yes |
| LED正向电流 | 350 mA | LED正向电压 | 4.8 V, 7.4 V, 7.9 V |
| 最大额定电流 | 3 x 525mA | 主波长 | 619 nm to 629 mn, 515 nm to 535 nm, 460 nm to 470 nm |
机械参数
| 颜色 | Red, Green, Blue (RGB) | 包装方式 | Tray |
| 透镜颜色 | Clear | 安装样式 | SMD/SMT |
| 连接器用途 | No | 照明颜色 | RGB |
产品信息
| 配置 | Star | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | + 115 C |
| 光通量 @ 电流/温度 | 69 lm Red, 109 lm Green, 29 lm Blue | ||
