点击放大查看

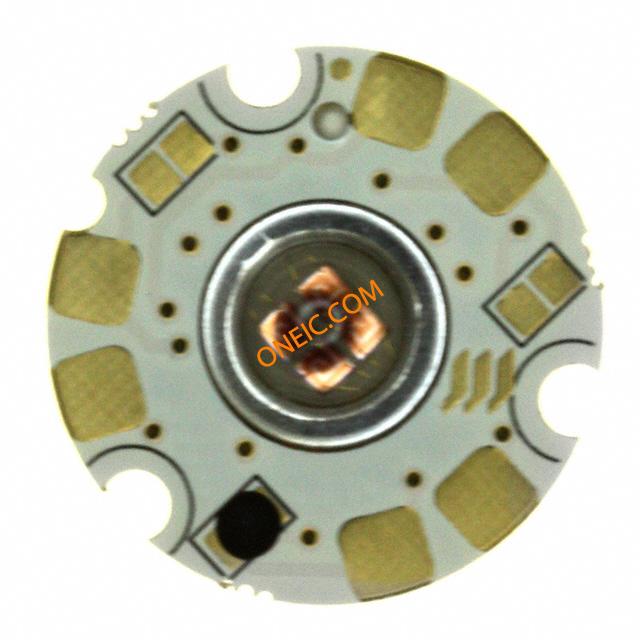

NT-41E0-0483
| 制造商 | Lighting Science Group Corporation |
| 描述 | High Power LEDs - Single Color Amber Atlas Series LIGHT ENGINE ATLAS AMBER |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Lamina | 其他名称 | 521-1055 |
| 产品类别 | High Power LEDs - Single Color | 标准包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 4.9V | 波长 | 584 nm to 594 nm |
| 光通量 | 131 lm | 额定功率 | 3.4 W |
| 视角 | 103 deg | 输出电流 | 700mA |
| 驱动电路 | Yes | LED正向电流 | 700 mA |
| LED正向电压 | 4.9 V | 最大额定电流 | 700mA |
机械参数
| 颜色 | Amber | 包装方式 | Tray |
| 透镜颜色 | Clear | 安装样式 | Screw |
| 连接器用途 | No | 照明颜色 | Amber |
产品信息
| 配置 | Star | ||
环境参数
| 机械寿命 | Obsolete | 光通量 @ 电流/温度 | 131 lm |
