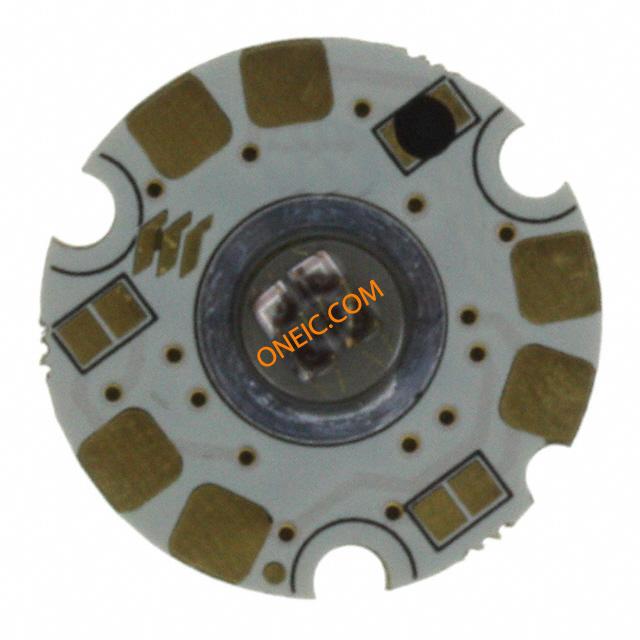

NT-41A0-0482
| 制造商 | Lighting Science Group Corporation |
| 描述 | High Power LEDs - Single Color Red Atlas Series LIGHT ENGINE ATLAS RED |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Lamina | 产品类别 | High Power LEDs - Single Color |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 4.7V | 波长 | 619 nm to 629 nm |
| 光通量 | 109 lm | 额定功率 | 3.3 W |
| 视角 | 105 deg | 输出电流 | 700mA |
| 驱动电路 | Yes | LED正向电流 | 700 mA |
| LED正向电压 | 4.7 V | 最大额定电流 | 700mA |
机械参数
| 颜色 | Red | 包装方式 | Tray |
| 透镜颜色 | Clear | 安装样式 | Screw |
| 连接器用途 | No | 照明颜色 | Red |
产品信息
| 配置 | Star | ||
环境参数
| 机械寿命 | Obsolete | 光通量 @ 电流/温度 | 109 lm |
