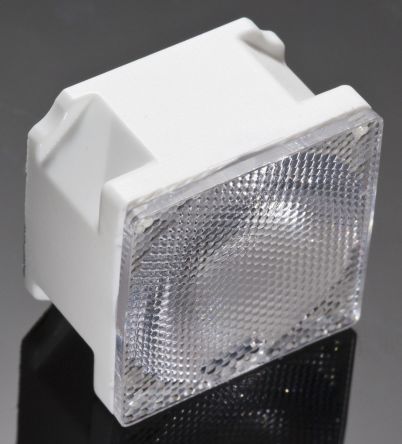

点击放大查看
商业参数
| 标准包装数量 | Tape | 工厂包装数量 | 1920 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 90019000 | ||
电气参数
| 光束角 | :15° | 视角 | 30° |
| 光学模式 | Medium | ||
机械参数
| 颜色 | Clear | 形状 | Square |
| 宽度 | 21.6 mm | 高度 | 14 mm |
| 长度 | 21.6 mm | 重量 | 0 |
| 透镜颜色 | :Transparent | 透镜样式 | :Square |
| 透镜材料 | :PMMA | 安装类型 | Adhesive |
| 安装样式 | Adhesive | 透镜样式/尺寸 | Square with Flat Top, 21.60mm |
产品信息
| 类型 | Lens | 样式 | Clear |
| 透镜类型 | :Lens with Holder | 附件类型 | :Medium Beam Lens |
| LED数量 | 1 | 其他规格 | Medium Angle |
| 适用产品/相关产品 | Dragon LED series | ||
