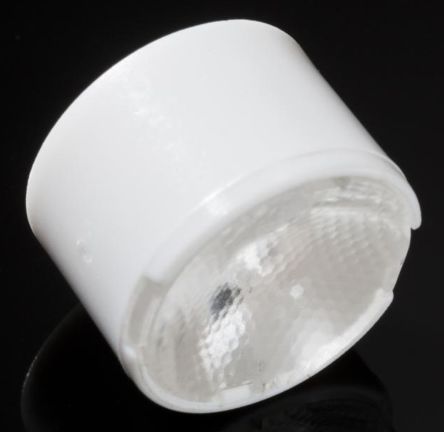

点击放大查看
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| LED | 1 | 输出端 | 光点 |
| 视角 | 20° | 光谱范围 | 散射 |
| 光学模式 | Spot | ||
机械参数
| 颜色 | Clear | 高度 | 7mm |
| 直径 | 10.5mm | 安装类型 | Snap-In |
| 透镜样式/尺寸 | Round with Flat Top, 10.5mm | 尺寸/外形 | 10.5. (Dia.) x 7mm |
产品信息
| 类型 | Lens with Holder | 系列 | Lisa |
| 光学元件形状 | 圆形 | 套件内容 | 支架、透镜 |
| LED数量 | 1 | 其他规格 | Spot Diffused |
| 适用产品/相关产品 | Dragon LED series | ||
