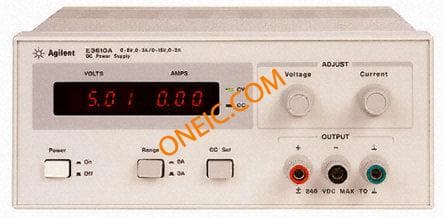

E3610A
| 制造商 | |
| 描述 | RSCAL(6677325) DC powr supply,8/15V;3/2A UKAS(6677325) DC powr supply,8/15V;3/2A 24W 2 Output Digital Bench Power Supply, 0 to 15 V, 0 to 8 V, 0 to 2 A, 0 to 3 A PSU, BENCH, 30W, DCPS PowerSupply;Single-Output30WTypeofPowerSupply;0to8/0to15V Pwr sup.unit: laboratory; Channels:1; 0÷15V/2A,0÷8V/3A |
| 分类 |
合规参数
| RoHS | Not Applicable | SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| 海关税号 | 85043180 | ||
电气参数
| 噪声 | ≤200µVrms | 输出类型 | :Fixed |
| 最大功率 | 30W(Max.) | 输入功率 | 230VAC ±10% 47-63Hz |
| 额定功率 | 24W | 额定输出功率 | 30W |
| 额定电压 | 0 → 15 V, 0 → 8 V | 负载调整率 | :0.01% |
| 输出功能 | 0...15V/2A, 0...8V/3A | 输出电流 | 0 → 2 A, 0 → 3 A |
| 供电电压 | 110 V ac, 230 V ac | 输出数量 | 2 |
| 输出分辨率 | 10mA | 供电类型 | :Linear |
| 输出电流2 | :2A | 通道数量 | 1 |
| 导通电压 | ≤0,01% + 2mV | 最小输入电压 | 8/15VDC |
| 输出电流（典型） | :2A | 输出电压（最大） | :15V |
| 电压线性调整率 | 0.01%+2mV | 输出电压（最小/固定） | :8V |
| 输出电压2（可调范围） | :15V | ||
机械参数
| 深度 | :319mm | 宽度 | :213mm |
| 高度 | :88.1mm | 长度 | :91mm |
| 重量 | :3.8kg | 尺寸/外形 | 3.6in.Lx8.4in.Wx12.6in.H |
| 位数 | 2 | ||
产品信息
| 类型 | Digital | 保修 | :3 Years |
| 插头类型 | :Euro, UK | 校准 | RSCAL |
| 制造商全称 | E3600Series | 显示样式 | LED |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | 0°C | 最高温度限值 | +55°C |
