点击放大查看
SHF-001T-0.8BS
| 制造商 | |
| 描述 | CONN TERM CRIMP NH 22-28AWG SHF crimp contact Contact SKT Crimp ST Cable Mount Reel JST SM 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 其他名称 | 455-1121-1 | 标准包装数量 | 5,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | 3 A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 间距 | Not Required mm | 高度 | 3 mm |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-28 AWG |
| 端接方式 | Crimp | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 电缆直径 | 0.33mm² | 连接器类型 | 母座 |
| 接触镀层 | Tin | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 9 mm |
| 端接排数 | 压接 | 触点数 | Not Required |
| 接触件端接 | Crimp | 线规或范围 - AWG | 22AWG |
产品信息
| 类型 | Contact | 连接器性别 | Female |
| 系列 | SM | ||
环境参数
| 工作温度 | +85°C | ||
文档与媒体
相关型号
SMP-02V-BC
JST Sales America Inc
CONN SM CRIMP 2.5MM JST 2 Way 1 Row Straight Male Multiway Connector
H2P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 2POS NH
H4P-SHF-AA
JST Sales America Inc
NH CONN CRIMP STYLE 4POS 2.5MM
H5P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 5POS NH
H6P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 6POS NH

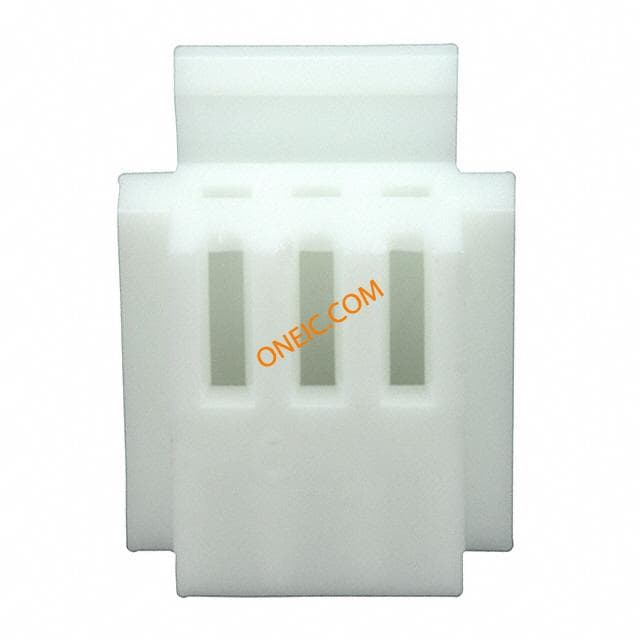

H3P-SHF-AA
JST Sales America Inc
CONN HOUSING NH 3POS 2.5MM JST NH 系列 2.5mm 节距 3 路 直 母 PCB 壳体
H7P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 7POS NH
H8P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 8POS NH
H9P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 9POS NH
H12P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 12POS NH
H14P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 14POS NH
H20P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 20POS NH
H24P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 24POS NH

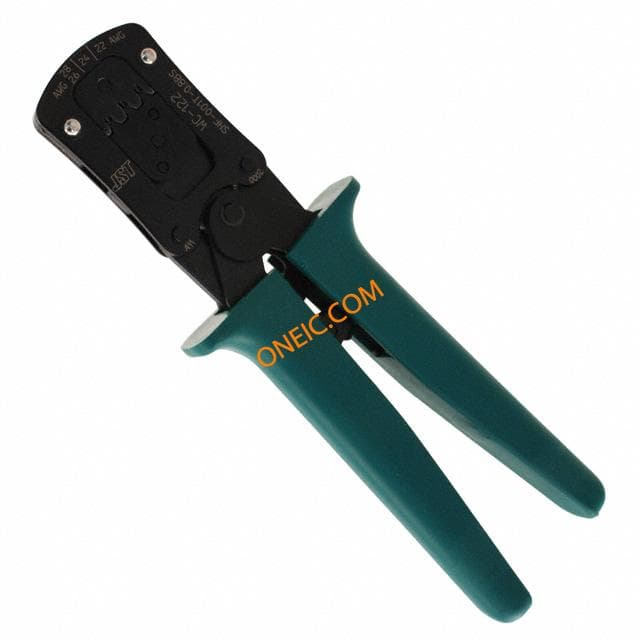

WC-122
