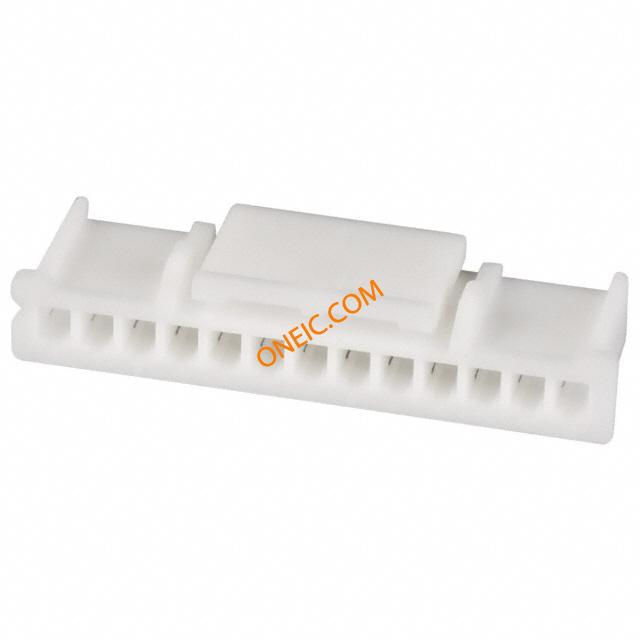

PAP-13V-S
| 制造商 | |
| 描述 | CONN HOUSING PA 13POS 2MM WHITE connector,multipole PCB use,PAP-13V-S, |
| 分类 |
商业参数
| 其他名称 | 455-1497 | 标准包装数量 | 1,000 |
合规参数
| RoHS | Compliant | ||
机械参数
| 颜色 | Natural | 深度 | 8mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 5.8mm |
| 长度 | 28mm | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 13 | 接触件端接 | Crimp |
| 位数 | 13 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | PA |
| 适用产品/相关产品 | Crimp Connector | ||
