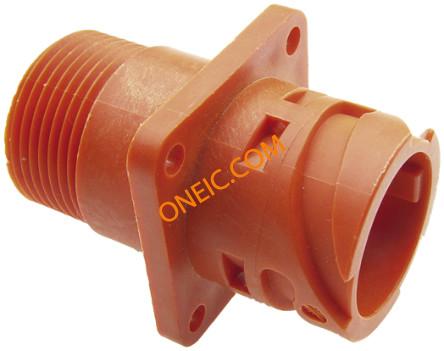

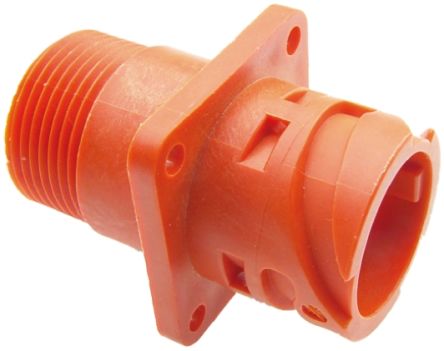

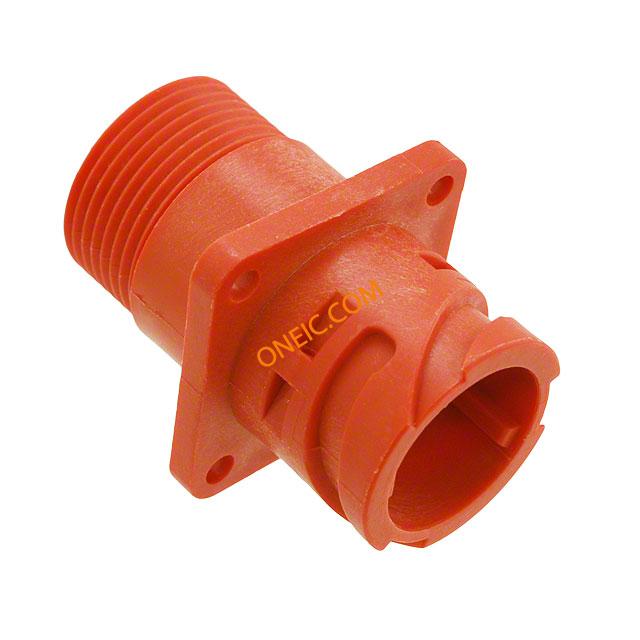

121583-0015
| 制造商 | ITT Inc. |
| 描述 | Conn Circular PIN 1 POS Crimp ST Flange Mount 1 Terminal 1 Port CONN HSG RCPT 1POS PWR RED PIN 1 Pole Female Straight Panel Mount Industrial & Automation Circular Connector APD Series HighPowerFlangeReceptacle,1-way,red ITT Cannon APD 系列 1路 面板安装 直向 连接器 插座 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 48 V dc | ||
机械参数
| 包装方式 | Bulk | 方向 | 6 |
| 端接方式 | Crimp | 重量（g） | 10.80000 |
| 触点尺寸 | 1 Power | 触头类型 | Crimp |
| 安装类型 | Flange Mount | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 壳体材料 | PBT |
| 触点数 | 1 | 位数 | 1 |
| 外壳尺寸-插件 | DIN | 外壳材料及表面处理 | Polybutylene Terephthalate (PBT) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | APD |
环境参数
| 密封等级 | IP67 | 防护等级 | IP67/69 - Dust Tight, Waterproof |
| 工作温度 | +125°C | ||
文档与媒体
相关型号

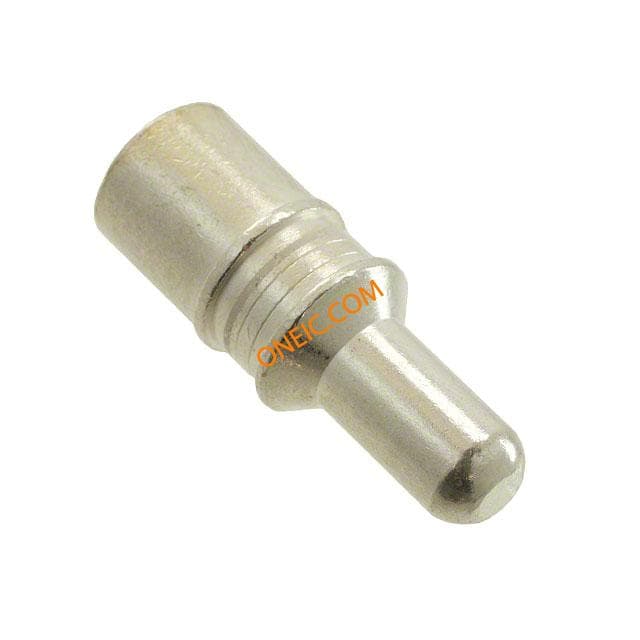

030-8614-020
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONTACT PIN CRIMP 2AWG SILVER 1 Pole Straight Industrial & Automation Circular Connector with Male Contacts APD Series MachinedPinCrimpContact,2AWG,Cu+Au ITT Cannon APD 系列 1路 直向 连接器 , 公触点

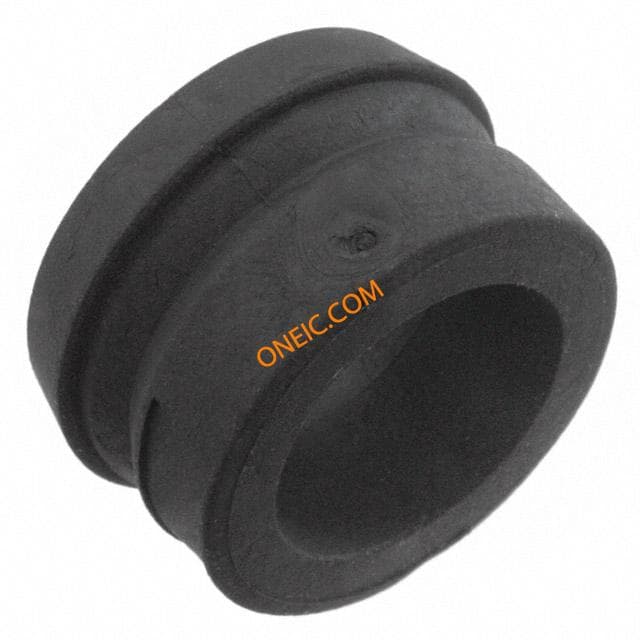

351-8697-002
itt interconnect solutions
Connector Accessories Cable Sealing Set CABLE SEAL APD 1WAY 12.3-13.5MM 351 Series Circular Connector Seal Diameter 21.5mm For Use With APD Series CABLE SEAL, APD 1WAY, 12.3-13.5MM
121583-0013
itt interconnect solutions
Conn Circular SKT 1 POS Crimp ST Cable Mount 1 Terminal 1 Port CONN HSG PLUG 1POS CABLE SKT RED 1 Pole Male Straight Cable Mount Circular Connector Adapter, APD Series , 48V dc IP67, DIN 72585 121583-0013 HighPowerPlug,1-way,APDSeries,red ITT Cannon APD系列 1路 IP67 直向 Din 插头 插头, 48 V 直流 电缆安装
030-8614-010
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONTACT PIN CRIMP 4AWG SILVER 1 Pole Straight Industrial & Automation Circular Connector with Male Contacts APD Series CRIMP PIN, APD, SILVER, 25MM2, 4 AWG ITT Cannon APD 系列 1路 直向 连接器 , 公触点
121583-0021
itt interconnect solutions
APD-DP SEALING CAP CAP SEAL FOR APD 1-7WAY RCPT
217-8516-010
itt interconnect solutions
Connector Accessories Hexagonal Nut APD SEAL NUT 1-WAY Hexagonal Nut,APD series,Hi-Power,1-way HEX NUT, APD 1WAY HexagonalNut,APDseries,Hi-Power,1-way ITT Cannon PG16 六角螺母
075-8503-000
itt interconnect solutions
Connector Accessories Flange Gasket For Front And Rear Panel Mounting 14 CAB 14S GASKET REAR MT PCP Flange Flange For Use With Cannon APD Connector GASKET, FOR APD FLANGE RECEPT Gasket,FlangeReceptacle,for1way,APD 法兰 法兰, 使用于Cannon APD 连接器, -55 → +125 °C
066-8516-005
ITT Cannon, LLC
APD MOUNTING FLANGE
980-8672-010
ITT Cannon, LLC
ADPT STR 1-2WAY 17MM FLEX TUBE Adaptor,Flex Tube,2W for Plug-Receptacle ADAPTOR, FOR FLEX TUBE, APD ITT Cannon 适配器

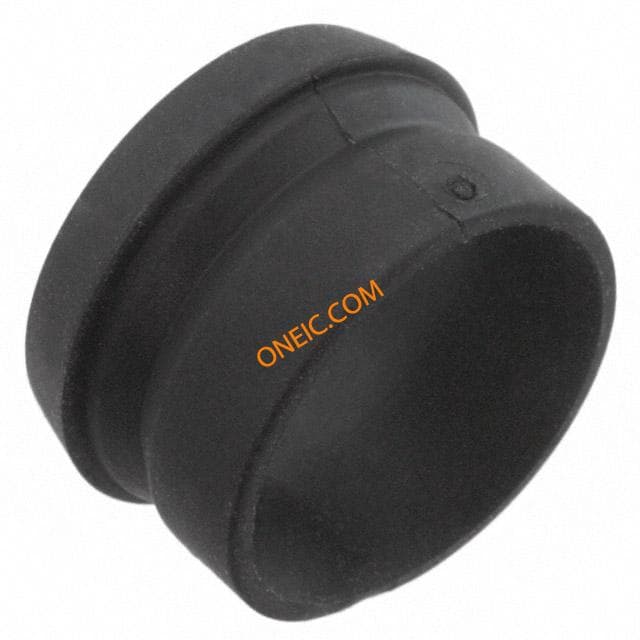

351-8697-004
ITT Cannon, LLC
CABLE SEAL APD 1WAY 16.7-17.8MM

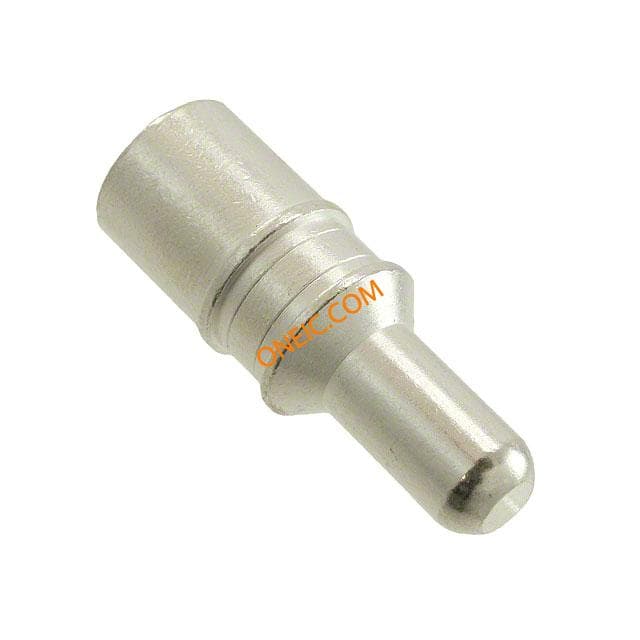

030-8614-030
ITT Cannon, LLC
CONTACT PIN CRIMP 16MM SILVR PWR

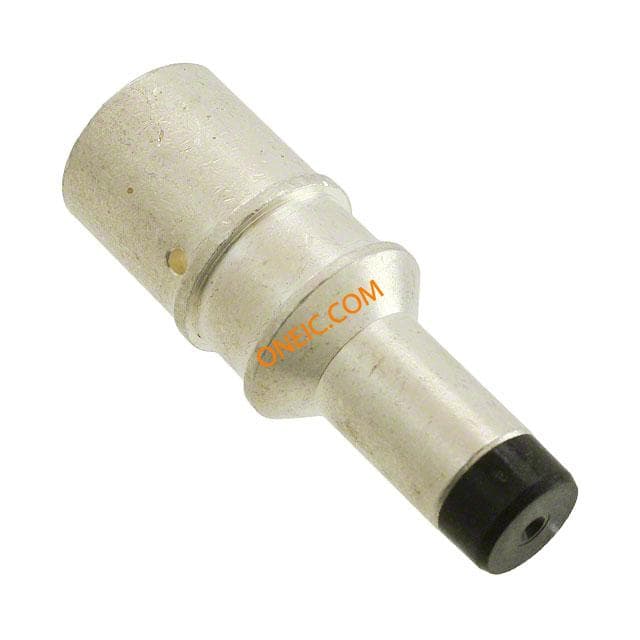

120110-0229
ITT Cannon, LLC
CONTACT PIN CRIMP 16MM SILVR PWR

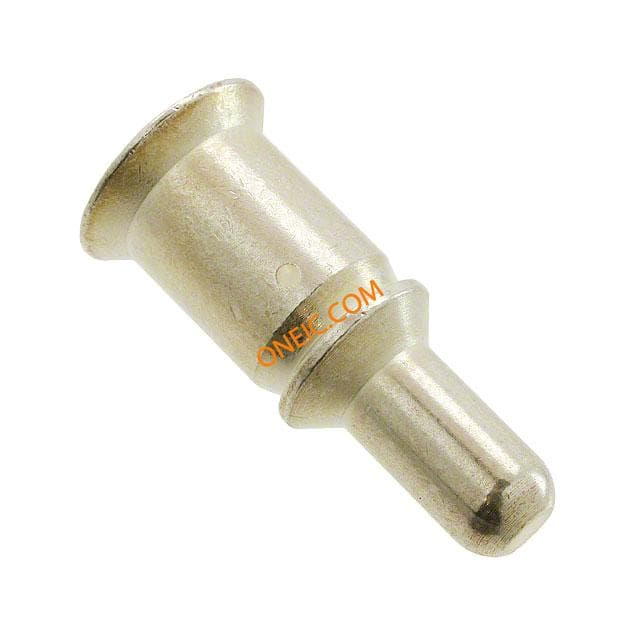

030-8581-029
ITT Cannon, LLC
CONTACT PIN CRIMP 50MM SILVR PWR

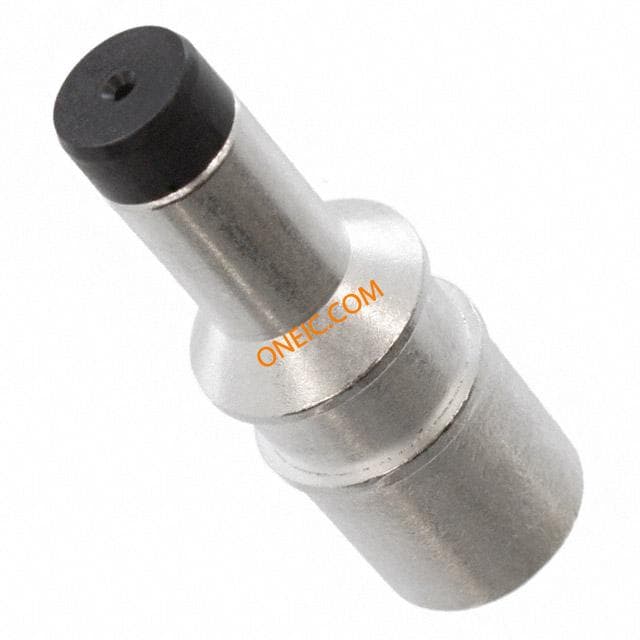

120110-0220
ITT Cannon, LLC
CONTACT PIN CRIMP 4AWG SILVR PWR 1 Pole Industrial & Automation Circular Connector with Male Contacts APD Series CRIMP PIN, APD,25MM2, FINGER PROTECT MachinedPinCrimpContact,4AWG,Auplate ITT Cannon APD 系列 1路 连接器 , 公触点

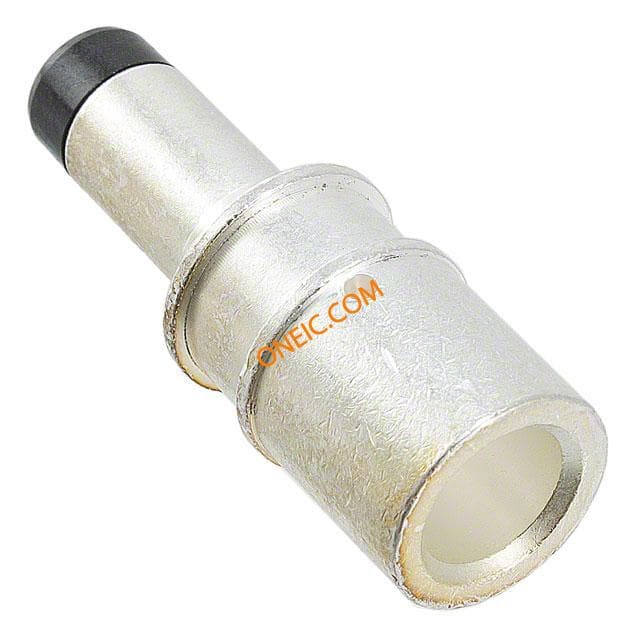

120110-0221
ITT Cannon, LLC
CONTACT PIN CRIMP 2AWG SILVR PWR 1 Pole Industrial & Automation Circular Connector with Male Contacts APD Series CRIMP PIN, APD,35MM2, FINGER PROTECT
351-8697-001
ITT Cannon
CABLE SEAL APD 1WAY 10.4-12MM 351 Series Circular Connector Seal Diameter 21.5mm For Use With APD Series CABLE SEAL, APD 1WAY, 10.4-12MM 351系列 连接器封套, 21.5mm直径, 使用于APD 系列, -40 → +125 °C

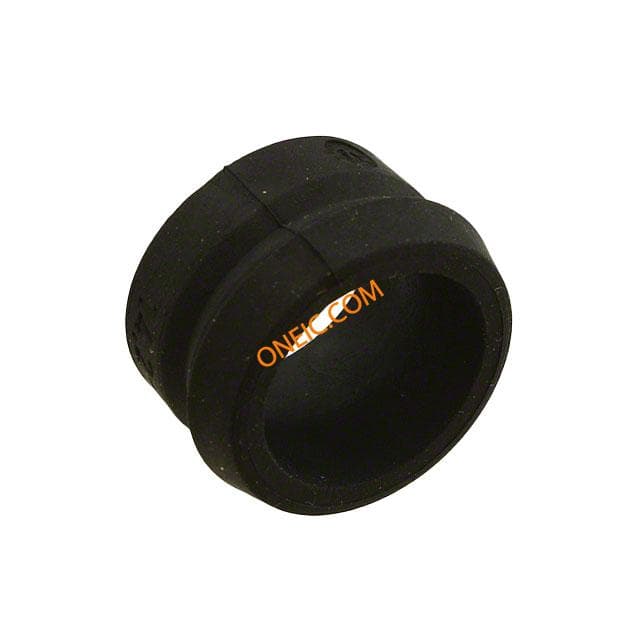

351-8697-003
ITT Cannon, LLC
APD WIRE SEAL 1WAY 14.2-15.8MM
075-8503-004
ITT Cannon, LLC
FLANGE GASKET APD 1-7WAY

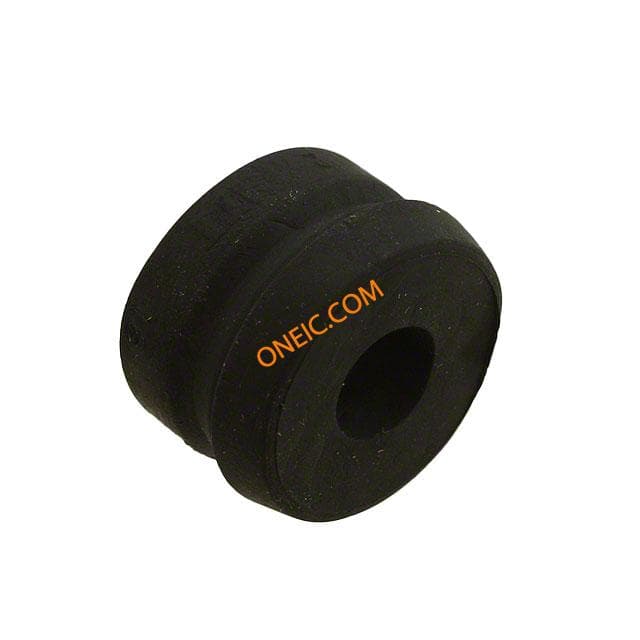

351-8697-005
ITT Cannon, LLC
APD WIRE SEAL 1WAY 5.8-7.4MM 351 Series Circular Connector Seal Diameter 21.5mm For Use With APD Series CABLE SEAL, APD 1WAY, 5.8-7.4MM 351系列 连接器封套, 21.5mm直径, 使用于APD 系列, -40 → +125 °C
980-8672-004
ITT Cannon, LLC
ADPT R/A 1WAY-17MM FLEX TUBE 90deg Endbell For 2way Plug-Recep,17.4mm
