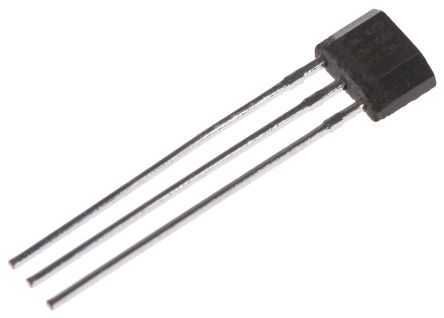

SS496A1
| 制造商 | |
| 描述 | Board Mount Hall Effect / Magnetic Sensors 10mA 5V/9V 3-Pin Hall Effect Sensor 10mA 5V/9V 3-Pin Bulk HallLinear Analog Sensors, Magnetic Position Sensors, PCB level Position Sensors (Miniature Plastic package) SENSOR SS HALL EFFECT RATIOMETRC Ratiometric Hall Effect Sensor, 1.5mA, 4.5 to 10.5V dc Hall Effect Sensor 10mA 5V/9V 3-Pin Bulk Product Highlights:Small sizeLow power consumptionSingle current sinking or current sourcing linear outputBuilt-in thin-film resistors - laser trimmed for precise sensitivity and temperature compensationRail-to-rail operation provides more useable signal for higher accuracyResponds to either positive or negative gaussQuad Hall sensing element for stable output) LINEARHALLEFFECTSENSOR Sensor,HallEffect;SS490Series;RatiometricLinear;RadialleadIC Sensor: Hall effect; bipolar; Range: –84÷+84mT; Usup:4.5÷10.5VDC SS490 Series high accuracy miniature ratiometric linear Hall-effect sensor IC, flat TO-92-style package, straight standard leads, 1000 units/bag Ratiometric Sensor TO-92, SS496A1, Honeywell Honeywell 比例式 霍尔效应传感器 switching current 1.5 mA supply voltage 4.5 → 10.5 V 直流 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 1 | 交货时间 | 56 Days |
| 单位包装 | 1000 | 子类别 | Hall Effect Sensor |
| 产品类别 | Board Mount Hall Effect / Magnetic Sensors | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 输出端 | ANALOG | 分辨率 | 25bits |
| 输出类型 | Analog, Ratiometric | 传感器类型 | bipolar |
| 感应范围 | 2.5mV Trip, ±0.075mV/G Release | 额定电压 | 0.4 V |
| 最大频率 | 84mT | 输出电流 | 8.7 mA |
| 供电电压 | 5 V, 9 V | B值容差 | 75mT |
| 元件数量 | 0 | 开关电流 | 1.5 mA |
| 输入偏置电流 | 7mA | 最小输入电压 | 4.5V |
| 最小供电电压 | 4.5 V | 集电极截止电流（最大） | 7mA |
| 共模瞬态抗扰度（最小） | Automotive | ||
机械参数
| 深度 | 1.6mm | 宽度 | 3mm |
| 长度 | 4.06mm | 重量 | 1 g |
| 包装方式 | Bulk | 引脚样式 | Through Hole |
| 安装类型 | THT | 端子类型 | PCB |
| 安装样式 | Through Hole | 封装形式 | SIP |
| 顶部端接 | 150°C | 位数 | 3 |
| 最小工作高度 | -40°C | 供应商器件封装 | Radial Lead |
产品信息
| 类型 | Ratiometric | 匹配码 | SS496A1 |
| 技术 | Linear | 可编程性 | NO |
| 测量范围 | –84...+84mT | 单元数量 | 1 |
| 标准交期 | 12 weeks | ||
环境参数
| 温度 | ±0.032% | 工作温度 | + 150 C |
