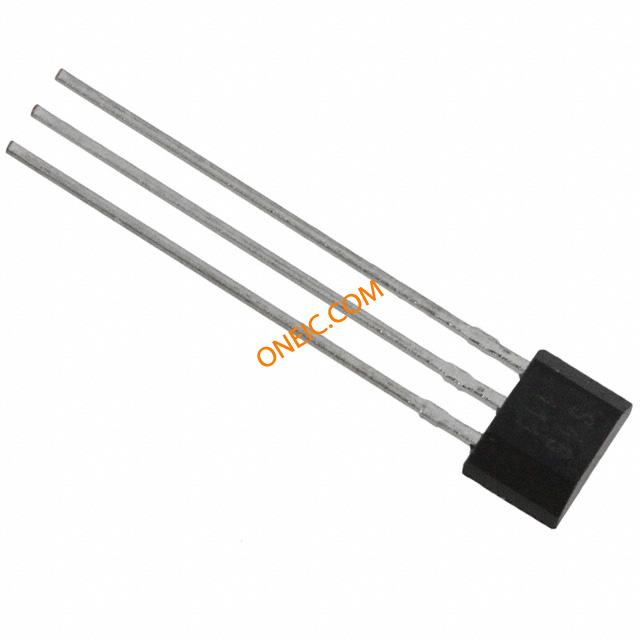

SS46
| 制造商 | |
| 描述 | Board Mount Hall Effect / Magnetic Sensors Digital Position radial lead IC pkg Electromechanical Switch Solid State Switch Sensors, Magnetic Position Sensors, PCB level Position Sensors (Miniature Plastic package) SENSOR HALL EFFECT BIPOLAR Electromechanical Switch Solid State Switch Product Highlights:Digital current sinking outputQuad-Hall design virtually eliminates mechanical stress effectsTemperature compensated magneticsOperate/release points can be customizedHigh output current capabilityOperate/release points symmetrical around zero gauss (bipolar/latch)Package material: Plaskon 3300HSurface mount version available: SS400-S (with cut and formed leads) MagneticSensors |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Switch Misc |
| 产品类别 | Board Mount Hall Effect / Magnetic Sensors | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 输出类型 | Digital, Open Collector | 感应范围 | 150G Trip, -150G Release |
| 输出电流 | 8.7 mA | 供电电压 | 4.5 V to 24 V |
机械参数
| 包装方式 | Bulk | 安装类型 | Through Hole |
| 安装样式 | PCB | 封装形式 | TO-92 |
| 供应商器件封装 | Radial Lead | ||
产品信息
| 类型 | Bipolar Latch | ||
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | 工作温度 | + 150 C |
