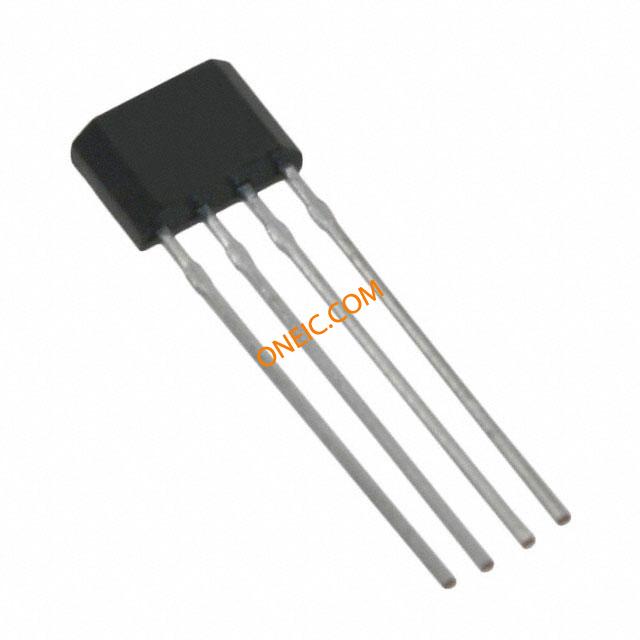

SS42R
| 制造商 | |
| 描述 | Board Mount Hall Effect / Magnetic Sensors 4.5Vdc to 16Vdc Magnet Position Sens Hall Effect Sensor 10mA Latch 1.8V/2.5V/3.3V/5V/9V/12V/15V/18V/24V 4-Pin SIP Bag Sensors, Magnetic Position Sensors, PCB level Position Sensors (Miniature Plastic package) SENSOR HALL EFFECT BIPOL RADIAL Hall Effect Sensor 10mA Latch 1.8V/2.5V/3.3V/5V/9V/12V/15V/18V/24V 4-Pin SIP Bag Product Highlights:Digital dual complementary sink/source outputsReverse voltage polarity protection for full supply rangeOperate/release points are trimmed for zero symmetryHigh output current capabilitySmall, 4-pin SIP package Sensor,DualOutputLatchingHallEffect,ActiveHigh/LowComplementaryOutput SS42R Active high/active low complementary output Hall-effect latching sensor IC, 4-Pin SIP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Hall Effect Sensor |
| 产品类别 | Board Mount Hall Effect / Magnetic Sensors | 标准包装数量 | 1,000 |
| 标准封装名称 | SIP | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 核心类型 | Latch | 输出类型 | Analog, Ratiometric |
| 释放范围（时间） | -18.5 mT [-185 G] min. @ 25 °C | 感应范围 | 185G Trip, -185G Release |
| 额定电压 | 0.4 Vdc max. | 开关功能 | Latching |
| 输出电流 | 6.5 mA | 供电电压 | 4.5 V to 16 V |
| 漏电流 | 1 µA max. | 最小供电电压 | 18.5 mT [185 G] max. |
| 最小接收功率 | -185 | 差分 - 输入:输出 | 20.0 mT [200 G] min. |
| 开关时间（Ton, Toff）（最大） | 1.0 µs max. | ||
机械参数
| 包装方式 | Bag | 引脚样式 | Through Hole |
| 端接方式 | PC Board | 安装样式 | Through Hole |
| 封装形式 | SIP-4 | 冷却的封装 | 4-Pin SIP |
| 包装数量 | SIP | 位数 | 4 |
| 供应商器件封装 | 4-SIP | ||
产品信息
| 类型 | Active High/Active Low Complementary Output Hall-Effect Latch | 系列 | SS42 |
| 产品子类型 | Dual/Complementary Output Hall-Effect Latching IC | 工作高度 | 185 |
环境参数
| 工作温度 | + 100 C | ||
