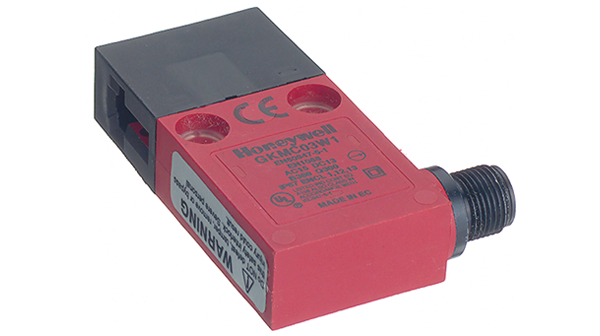

GKMC03

制造商	Honeywell International Inc.
描述	Keylock Switches 1NC/1NO 10A 240Vac Mini Key Interlock SWITCH SAFETY INTERLOCK MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Safety Switches, Key Operated Interlock Switch; Miniature KEY OPERated SAFETY INTERLOCK; 1NC/1NO; SIDE EXIT M12 DC Electromechanical Switch Safety Switch N.O./N.C. 10A Electromechanical Switch Safety Switch N.O./N.C. 10A Product Highlights:Positive opening operation of normally closed contactsCompact enclosureSide or top key entryChoice of pre-wired cable or micro-change connectorBottom or side cable exit Bottom or side, or dual connector exitHigh switching current capabilityChoice of two stainless steel keys (Key sold separately)Dust cap for unused key entryUL, CSA, CE, BG Switch,MiniatureKEYOPERatedSAFETYINTERLOCK,1NC/1NO,SIDEEXITM12DC GKM Series, Miniature Key Operated Safety Interlock Switch, 1NC/1NO Direct Opening, Slow Action, Side Exit M12 dc Micro-change Connector, Plastic Housing, Silver-Nickel Contacts Interlocking switches, GKMC03, Honeywell
分类	开关速动开关安全与限制开关

对参数有疑问？问 AI 助手

商业参数

交货时间	28 Days	子类别	Switch Safety Interlock
产品类别	Keylock Switches

RoHS	RoHS Compliant	欧盟RoHS	Compliant
标准	ULListed,CSACertified,CEMarked	UL档案号	E37138
认证机构	UL, CSA, CE	CSA档案号	E37138
机构认证与标准	IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14

本体表面处理	Miniature	端接方式	Side Exit M12 dc Micro-change Connector
触点形式	1 NC / 1 NO	致动器类型	Key
操作力	50 g per IEC 68-2-27	总宽度	43 x 16 x 69.4 mm
触头材料	Silver	壳体材料	Plastic
端接样式	Screw	触点数	1 make contact (NO)
位数	1

备注	IEC 947-5-1, EN60947-5-1, EN1088, EN60204, UL508, UL746C, CSA22-2-14	类型	Interlock
系列	GKM	功能	Safety
钥匙类型	Miniature	开关类型	1NC/1NO Direct Opening, Slow Action
UNSPSC代码	302119	产品子类型	Key Operated Safety Interlock Switch
UNSPSC商品	302119 Switches and controls and relays
