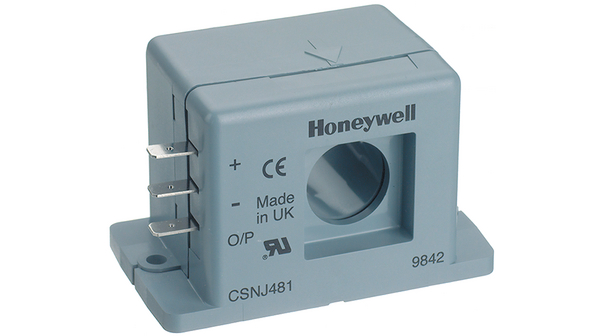

CSNJ481
| 制造商 | Honeywell International Inc. |
| 描述 | Industrial Current Sensors CURRENT SENSORS Closed Loop Current Sensor AC/DC Current 15V 3-Pin CLOSED LOOP CURR SENSOR MEASURES Board Mount Current Sensors CURRENT SENSORS Closed Loop Current Sensor AC/DC Current 15V 3-Pin Product Highlights:Current sensing up to 1275 amps (depending on product listing)Measures ac, dc and impulse currentsCompetitive cost/performance ratioRapid responseHigh overload capabilityHigh level of electrical isolation between primary and secondary circuitsIndustrial operating temperature rangeSmall size and weight CurrentSensors CSN Series closed loop current sensor, measures ac, dc or impulse current, 300 A nominal, ±600 amp range, 2000 turn Current sensor, CSNJ481, Honeywell |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 42 Days | 子类别 | Current Sensors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 合规性 | Compliant | ||
电气参数
| 输出端 | Current | 电流 | 300 A RMS @ 25 °C |
| 精度 | +/- 0.5 % | 线圈类型 | 2000 |
| 频率 | 150(Max) | 线性度 | ±0.1 % |
| 容差 | ±0.5% | 电阻 | 0 Ohm min., 50 Ohm max. |
| 输出类型 | Current | 传感器类型 | Closed Loop |
| 电流比 | 300 A | 响应时间 | 0.5µs |
| 测试电流 | ±600 A | 额定电压 | ±12 |
| 线圈电阻 | 25 Ohm | 输出电流 | 14mA |
| 供电电压 | +/- 12 VDC to +/- 18 VDC | 感应电流 | AC|DC |
| 次级电压 | 7.5 kV | 输入偏置电流 | ±600A |
| 最大额定电流 | 600 A | 最小供电电压 | ± 12...18 VDC |
机械参数
| 尺寸 | 93 x 53 x 58 mm | 高度 | 58 |
| 长度 | 93 | 带宽 | DC...150 kHz |
| 包装方式 | Bulk | 极化 | Bidirectional |
| 安装类型 | Through Hole | 封装形式 | Module, Single Pass Through |
| 冷却的封装 | Housed | 壳体材料 | Unfilled PBT (UL94-V0) |
| 工作尺寸 | ø23 mm | 位数 | 3 |
产品信息
| 备注 | Standard 300 A housed sensor. | 类型 | Closed Loop Linear |
| 样式 | Spade Terminals (x 3) | 系列 | CSN |
| 极性 | Bidirectional | UNSPSC代码 | 41111928 |
| 产品子类型 | Closed Loop Linear | 测量范围 | ±600 A |
| 测量制式 | 150 mA for 300 A | UNSPSC商品 | 41111928 Current Sensors |
| 模块/板类型 | Module | 输出配置 | Through Hole |
环境参数
| 工作温度 | - 40 C to + 85 C | ||
