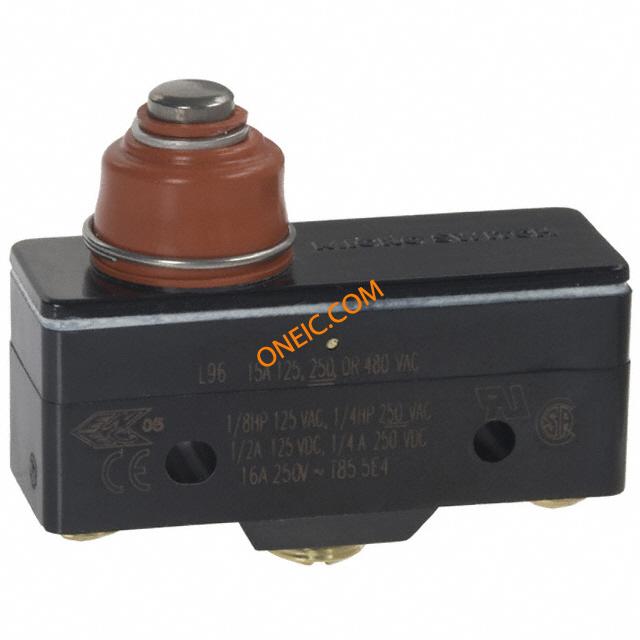

BZ-2RDS-A2-S
| 制造商 | |
| 描述 | Basic / Snap Action Switches 15A @ 259 VAC SPDT Plunger Screw Switch Snap Action N.O./N.C. SPDT Overtravel Plunger Screw 15A 250VAC 5.28N Screw Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Basic Switches, MICRO SWITCH™ Standard Precision Switches SW PLNGER SPDT 15A SCREW 125V Switch; Basic; 15 AMPS; LARGE OVERTRAVEL PLUNGER Switch Snap Action N.O./N.C. SPDT Overtravel Plunger Screw 15A 250VAC 5.28N Screw Mount Product Highlights:Accepted world-wide standard "Large Basic" switchLow operating force and differential travelLong mechanical life up to 20,000,000 cycles at 95% survivalElongated mounting hole for easier, more accurate mountingCurrent rating ranges from 15 A to 25 AChoice of actuation, termination and operating characteristicsPotential Applications:Irrigation systemsSemi-trailer trucksTiming devicesOffice equipmentTest instrumentsMedical/dental equipmentHVAC equipmentManually operated devicesValves Switch,Basic,15AMPS,LARGEOVERTRAVELPLUNGER BZ Series Standard Basic Switch, Single Pole Double Throw Circuitry, 15 A at 250 Vac, Overtravel Plunger Actuator, 3,61 N - 5,28 N [13 oz - 19 oz] Operating Force, Silver Contacts, Screw Termination, CE, CSA, DEMKO |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Microswitch | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | 5 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULListed,CEMarked,CSACertified | ||
电气参数
| 电路 | SPDT | 额定电压 | 480 V |
| 开关功能 | On-Mom | 额定交流电压 | 250V VAC |
| 差动行程 | 0.002" (0.05mm) | 最大额定电流 | 15 A |
| 最小输入电压 | 250 | 开关功能/额定值 | N.O./N.C. |
机械参数
| 深度 | 17.45 mm | 高度 | 39.12 mm |
| 包装方式 | Bulk | 超行程 | 0.062" (1.6mm) |
| 端接方式 | Screws | 触点形式 | SPDT |
| 致动器类型 | Plunger, Pin | 安装类型 | Screw Mount |
| 释放力 | 113gf | 端子类型 | Screw |
| 安装样式 | Screw | 外壳材料（壳体） | GeneralPurposePhenolic |
| 操作力 | 3.61 N to 5.28 N | 触头材料 | Silver |
| 总长度 | 49.28 mm | 主要材料 | GeneralPurposePhenolic |
| 执行器材料 | Steel | 端接样式 | Screw |
| 按钮样式/尺寸 | Overtravel Plunger | 安装孔直径 | 0.14" |
| 开关驱动电平 | SPDT | 外壳与棱镜材料 | N/A/Phenolic |
产品信息
| 类型 | Basic | 系列 | BZ |
| 产品特性 | Steel Plunger | 工作高度 | 1.110" (28.2mm) |
环境参数
| 机械寿命 | 20,000,000 Cycles | 防护等级 | * |
| 温度额定值 | -55to+85°C | 工作温度 | -55°C ~ 85°C |
| 结工作温度 | 85C | ||
