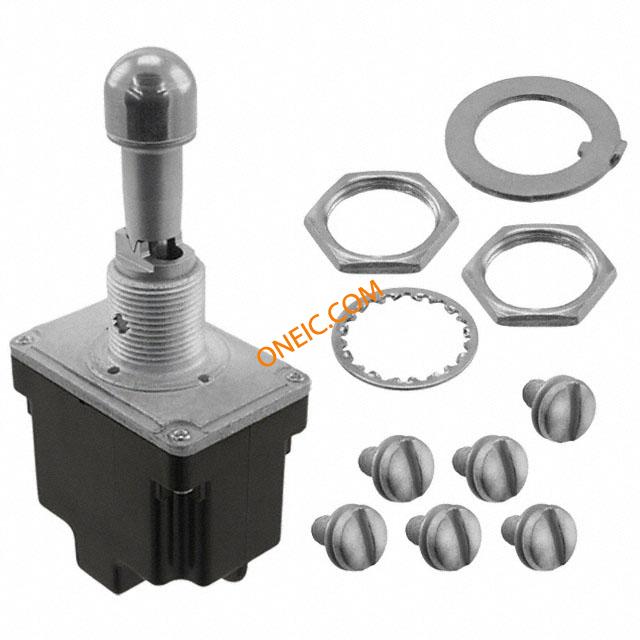

2TL1-31K
| 制造商 | |
| 描述 | Toggle Switches DPT 3 POS .5to20A at .5to28Vdc Switch Toggle None ON ON DPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 15A 125V Switch Toggle None ON ON DPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads Product Highlights:Qualified to MIL-S-3950Environment-proof sealing1,2, and 4 pole circuitryStandard and pull-to-unlock levers2 and 3 position, maintained and momentary toggle actionTemperature range: -85�F to +160�F Completely sealed switching chamberStep-design case provides added space between terminals to help prevent shortingUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SealedOperatorControls TL Series Toggle Switch, 2 pole, 3 position, Screw terminal, Locking Lever, Military Part Number MS24659-33K |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | MS24659-33K | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准编号 | Locking | 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
电气参数
| 电路 | DPDT | 操作方式 | 127807 |
| 额定功率 | 745.7 | 额定电压 | 277 V |
| 开关功能 | On-On | 供电电压 | 0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vac to 277 Vac |
| 最大额定电流 | 20 A | 最小输入电压 | 277@(CSA/UL) |
| 开关功能/额定值 | None ON ON | 最大持续工作电压（MCOV） | 0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
机械参数
| 深度 | 22.6 | 包装方式 | Bulk |
| 端接方式 | Screw | 触点形式 | DPDT |
| 致动器类型 | Lever | 安装类型 | Panel Mount with Threads |
| 端子类型 | Screw | 衬套螺纹 | 15/32-32 |
| 接触镀层 | Silver Cadmium Oxide | 安装样式 | Panel |
| 执行器长度 | 26.67mm | 锁定特性 | 127808 |
| 触头材料 | Silver Cadmium Oxide | 总长度 | 33.5 |
| 执行器材料 | Nickel Plated | 端接样式 | Screw |
| 按钮样式/尺寸 | Locking Lever | 衬套/护套类型 | 15/32-32 |
| 开关驱动电平 | DPDT | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | Silver cadmium oxide contacts | 系列 | TL |
| 功能 | 3 position | 电路结构 | DPDT |
| UNSPSC代码 | 30211908 | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Toggle Switch | UNSPSC商品 | 30211908 Toggle switches |
| 设备部件号 | MS24659-33K | ||
环境参数
| 防护等级 | Environment Proof | 工作温度 | -65°C ~ 71°C |
