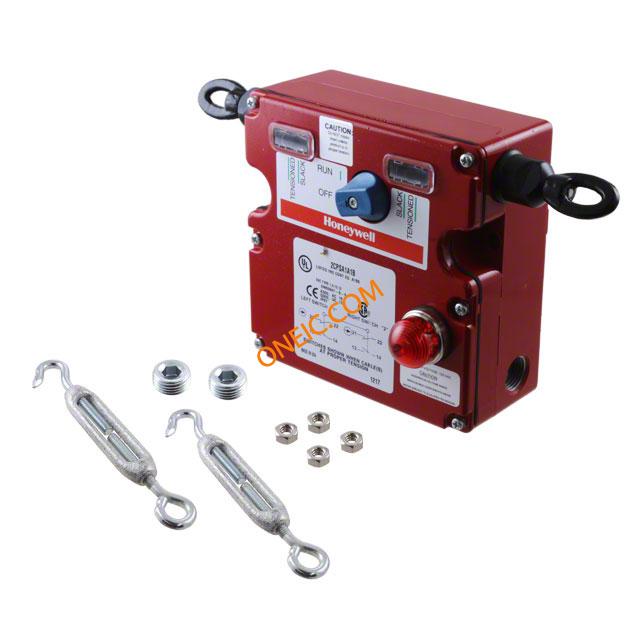

2CPSA1A1B
| 制造商 | Honeywell International Inc. |
| 描述 | Control Switches 10uA 250VAC 2NC/2NO Dir Opening SWITCH SAFETY INTERLOCK MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Safety Switches, Cable Pull SW CABLE 4PST ILLUM UL CSA 250V Electromechanical Switch Safety Switch N.O./N.C. 0.05A Electromechanical Switch Safety Switch N.O./N.C. 0.05A Product Highlights:Positive opening operation of normally closed contactsChoice of 2NC/2NO or 3NC/1NO contact configurationsMaximum cable length in a single direction is 76 m (250 ft) for a combined length of 152 m (500 ft) in dual directionsChoice of three actuator configurationsRemovable contact block version availableLarge wiring cavity with straight-through wiring 24 Vdc or 120 Vac bright, multi-cluster LED status indicator light availableGold-plated contacts are standardDie-cast zinc housingOptional hardware packs available SWITCH,SAFETY,2NC/2NO,MAINTDBHSIDES 2CPS Series, Cable Pull Safety Switch, Cable, Maintained Both Sides, 2NC/2NO Direct Opening (Switch 2, Left: 1NC/1NO; Switch 2, Right: 1NC/1NO), 1/2 NPT, Gold-plated Contacts, 120 Vac Multi-cluster LED |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 28 Days | 子类别 | Switch Safety Interlock |
| 产品类别 | Control Switches | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| UL档案号 | E37138, E157416 | 认证机构 | UL, CSA, CE |
| CSA档案号 | LR57326 | 机构认证与标准 | EN60947-1, EN-60947-5-1, EN60947-5-5 |
电气参数
| 电路 | 4PST (2-NO, 2-NC) | 电压 | 250 Vac and 60 Vdc Maximum |
| 指示器 | 120 Vac Red Multi-cluster LED | 额定电压 | 250V |
| 差动行程 | * | 最大额定电流 | 10 uA to 50 mA Low Energy |
| 触点额定值 @ 电压 | 10 uA to 50 mA | ||
机械参数
| 包装方式 | * | 预行程 | * |
| 超行程 | * | 接触端类型 | Mounted to Housing |
| 端接方式 | 1/2 NPT | 触点形式 | 2 NC / 2 NO |
| 致动器类型 | Cable | 安装类型 | Chassis Mount |
| 释放力 | * | 操作力 | 15 G |
| 触头材料 | Gold-plated | 壳体材料 | Zinc Die-Cast |
| 端接样式 | Screw Terminal | ||
产品信息
| 备注 | Low Voltage Directive 73/23/EEC, as amended by directive 93/68/EEC. Machinery Directive 98/37/EEC only as the directives relate to the components being used in a safety function. EN60947-1, EN-60947-5-1, EN60947-5-5 | 系列 | 2CPS |
| 产品特性 | * | 开关类型 | 2NC/2NO Direct Opening (Switch 1, Left: 1NC/1NO; Switch 2, Right: 1NC/1NO) |
| UNSPSC代码 | 302119 | 照明类型 | Y |
| 产品子类型 | Cable Pull Safety Switch | 控制方式 | Cable Pull Safety Switch |
| 电气寿命 | * | UNSPSC商品 | 302119 Switches and controls and relays |
| 工作高度 | * | ||
环境参数
| 振动 | 10 Hz - 500 Hz, 5 G | 机械寿命 | 1 Million |
| 防护等级 | IP67, NEMA/UL 1, 4, 12, 13 | 工作温度 | -40 °C to 85 °C [-40 °F to 185 °F] |
