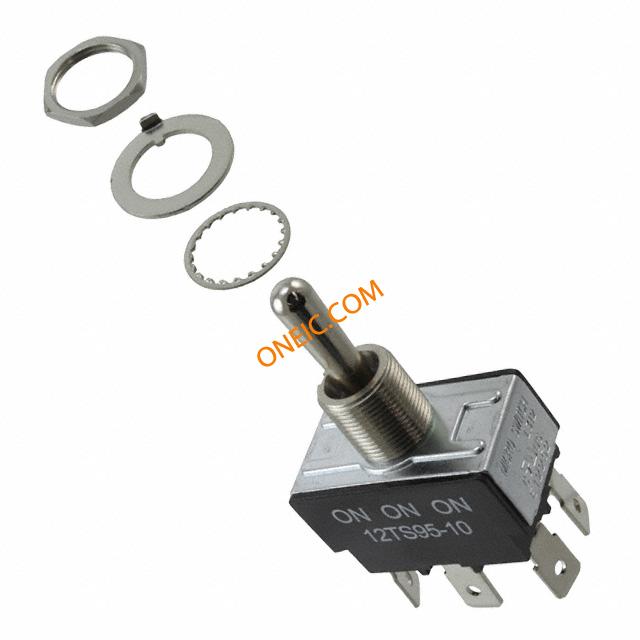

12TS95-10
| 制造商 | |
| 描述 | Toggle Switches Toggle SW 2POLE 3POS QK CONN TERM STD LVR Switch Toggle ON ON ON DPDT Round Lever Quick Conn 20A 277VAC 745.7VA Panel Mount with Threads MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 20A 125V Switch Toggle ON ON ON DPDT Round Lever Quick Conn 20A 277VAC 745.7VA Panel Mount with Threads Product Highlights:2- or 3-position, momentary and maintained action1- and 2-pole circuitryRated up to 20 ampLever-to-bushing sealUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SealedOperatorControls TS Series Toggle Switch, 2 pole, 3 position, Quick Connect terminal, Standard Lever |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" | ||
电气参数
| 电路 | DPDT | 操作方式 | 125022 |
| 额定功率 | 745.7@(CSA/UL) | 额定电压 | 277 V |
| 开关功能 | ON - ON - ON | 供电电压 | 0.4 A to 20 A at 0.5 Vac to 125 Vac|0.4 A to 10 A at 126 Vac to 277 Vac |
| 最大额定电流 | 10 A | 最小输入电压 | 277 |
| 开关功能/额定值 | ON ON ON | 最大持续工作电压（MCOV） | 0.4 A to 20 A at 0.5 Vac to 125 Vac|0.4 A to 10 A at 126 Vac to 277 Vac |
机械参数
| 深度 | 19.05 | 高度 | 61.22 |
| 包装方式 | Bulk | 端接方式 | Quick Connect |
| 触点形式 | DPDT | 致动器类型 | Lever |
| 安装类型 | Panel Mount with Threads | 端子类型 | Quick Connect |
| 衬套螺纹 | 15/32-32 | 安装样式 | Wire |
| 执行器长度 | 16.51mm | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 33.27 | 执行器材料 | Nickel Plated |
| 端接样式 | Quick Connect | 按钮样式/尺寸 | Round Lever |
| 衬套/护套类型 | 15/32-32 | 开关驱动电平 | DPDT |
| 面板开孔尺寸（外形） | Circular - 12.40mm Dia | ||
产品信息
| 备注 | Furnished unassembled | 系列 | TS |
| 产品特性 | Sealed | 功能 | 3 position |
| 电路结构 | DPDT | UNSPSC代码 | 30211908 |
| 照明类型 | Non-Illuminated | 产品子类型 | MICRO SWITCH⢠Toggle Switch |
| UNSPSC商品 | 30211908 Toggle switches | ||
环境参数
| 密封等级 | Sealed | 工作温度 | -54°C ~ 71°C |
