点击放大查看

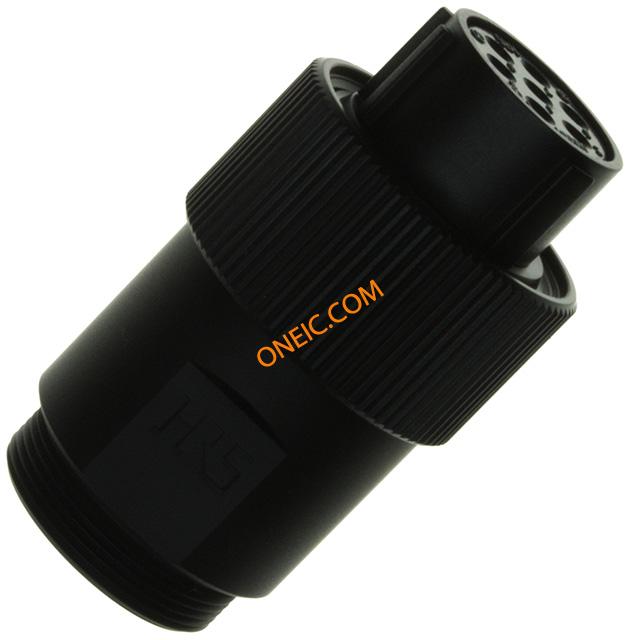

JR16WP-7S(71)

制造商	Hirose Electric Co., Ltd.
描述	Standard Circular Connector PLUG IP67 7POS FEM CONN PLUG WATERPROOF 7POS FMALE Plug IP67 waterproof solder 7 pin PlugIP67waterproofsolder7pin Hirose JR-W 系列 7路电缆安装直向连接器插头 , 母触点, 螺丝锁接合
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

500 V

最大额定电流

10 A

机械参数

外形尺寸(长x宽)	16	包装方式	Bulk
外壳尺寸	16	方向	Keyed
外壳样式	Plug	端接方式	Solder Cup
触头类型	母座	安装类型	Free Hanging (In-Line)
外壳镀层	Chromium	连接器类型	Plug, Female Sockets
接触镀层	Silver	紧固类型	Threaded
安装样式	Free Hanging	外壳材料（壳体）	Metal
连接器用途	Screw On	触头材料	Copper Alloy
壳体材料	Aluminium Alloy, Brass, Zinc Alloy	端接排数	焊接
端接样式	Solder	第一触头极性	Socket (Female)
触点数	7	位数	7
外壳尺寸-插件	16	外壳材料及表面处理	Aluminum, Brass and Zinc Alloy, Black Chrome Plated

产品信息

连接器性别	Male	系列	JR
产品子类型	Connectors

环境参数

密封等级	IP67	防护等级	IP 67
工作温度	-25°C ~ 85°C

文档与媒体

PDF 文档

e11420015.pdf

相关型号

JR16WCC-12(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RLF JR16 12MM CONN CABLE CLAMP 12MM

¥76.0403

详情

JR16WCCA-12(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RLF JR16 12P CONN STRAIN RELIEF JR16 12MM

¥27.1320

详情

JR16WCCA-6(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR16 6P CONN STRAIN RELIEF JR16 6MM

¥27.3360

详情

JR16WCC-4(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RLF JR16 4MM CONN CABLE CLAMP 4MM Cable clamp,self tightening,4mm Hirose 黑色电缆夹

¥60.3840

详情

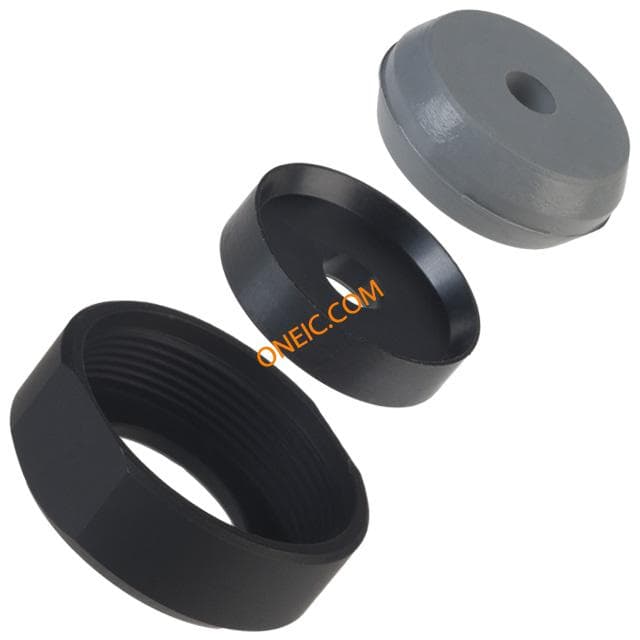

JR16WCCA-4(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR16 4P CONN STRAIN RELIEF JR16 4MM

¥27.1320

详情

JR16WCCA-8(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR16 8P CONN STRAIN RELIEF JR16 8MM

¥28.7599

详情

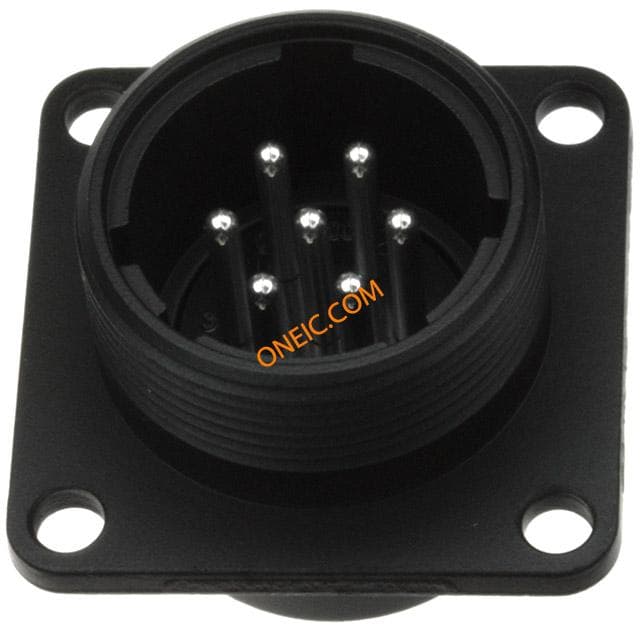

JR16WR-7P(71)

Hirose Connector

Standard Circular Connector RCPT IP67 7POS MALE CONN RCPT WATERPROOF 7POS MALE Receptacle IP67 waterproof solder 7 pin Hirose JR-W 系列 7路面板安装直向连接器插座 , 公触点, 螺丝锁接合

¥40.4872

详情

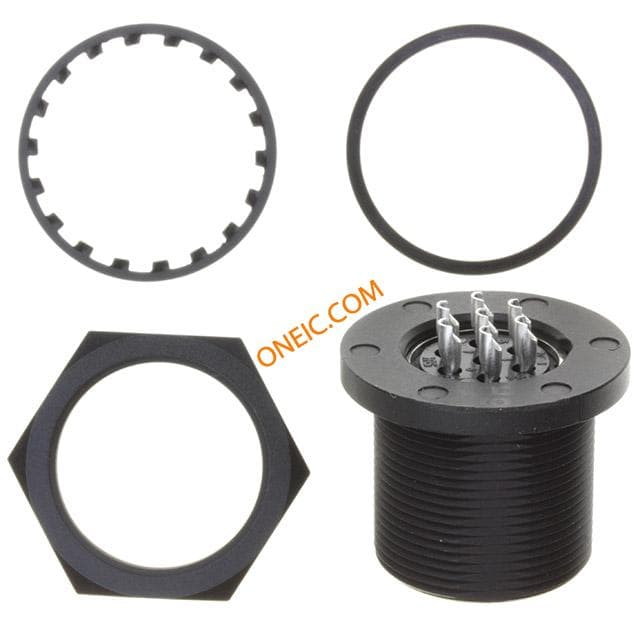

JR16WRA-7P(71)

Hirose Connector

Standard Circular Connector RCPT IP67 7POS MALE CONN RCPT WATERPROOF 7POS MALE

¥60.8192

详情

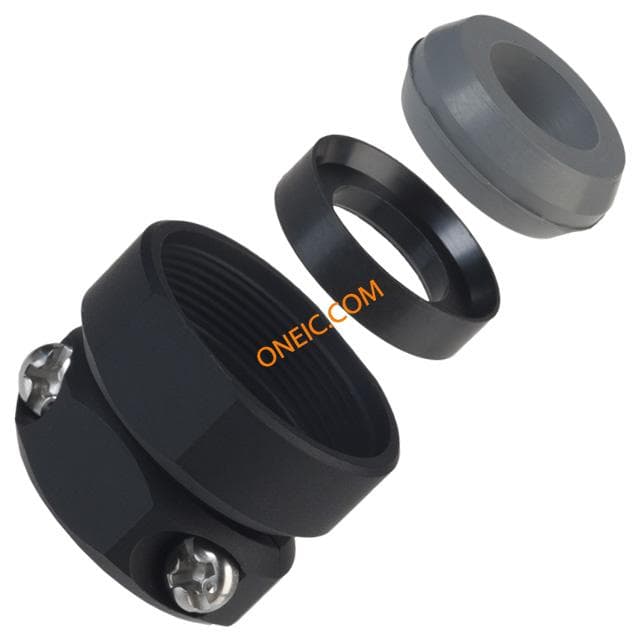

JR16WCC-10(71)

Hirose Connector

Standard Circular Connector STRAIN RLF JR16 10MM CONN CABLE CLAMP 10MM Cable clamp,self tightening,10mm Connector Accessories Cable Clamp Shell Size 16 Hirose 黑色电缆夹

¥72.4397

详情

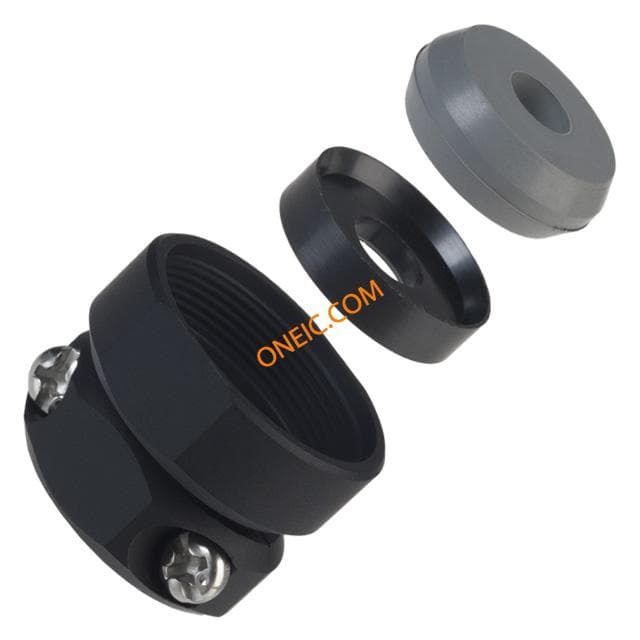

JR16WCC-6(71)
