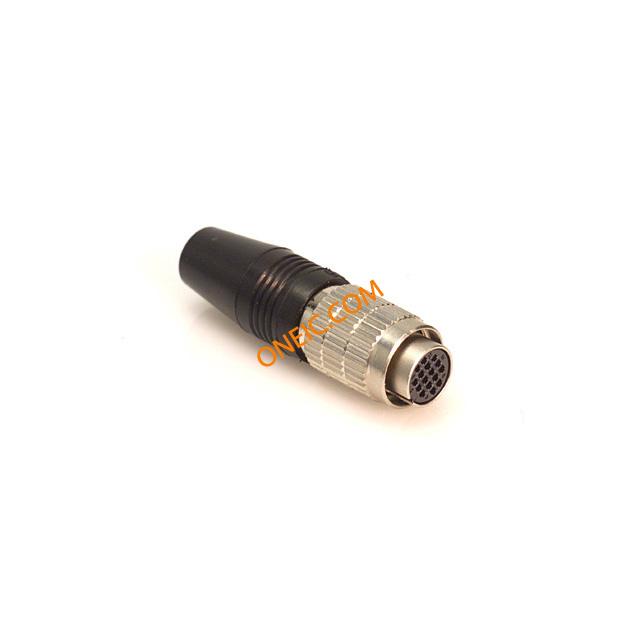

HR25-9TP-16SC(72)
| 制造商 | |
| 描述 | Circular Push Pull Connectors 16P CRMP RECPT SH SZ 9 FEM CONN PLUG 16POS FEMALE CRIMP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 30 V | 最大额定电流 | 1 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 9 |
| 导线线规 | 30 | 外壳样式 | Plug |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 外壳材料（壳体） | Hybrid |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | 9 | 外壳材料及表面处理 | Brass and Zinc, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | HR25 |
| 产品子类型 | Connectors | ||
文档与媒体
PDF 文档
PDF 文档
