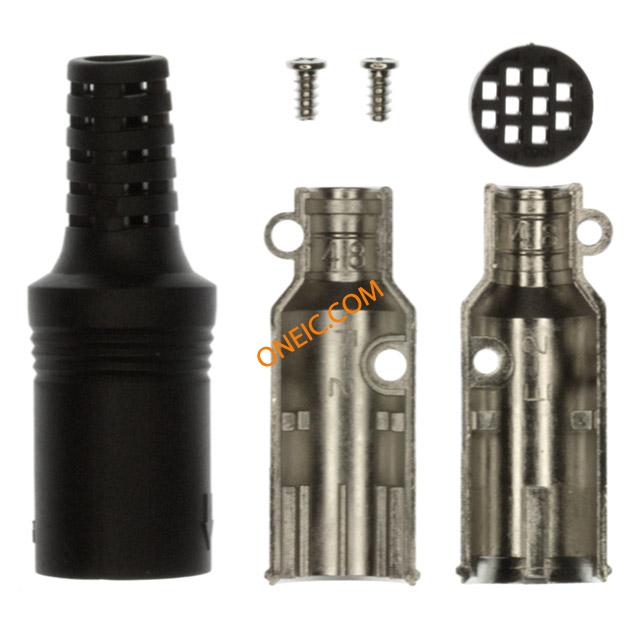

HR212-10P-10PC(71)
| 制造商 | |
| 描述 | Standard Circular Connector PLUG 10P VERT CRIMP TIN CONN PLUG 10POS VERT CRIMP TIN Conn Miniature Circular DIN M 10 POS Solder ST Thru-Hole 10 Terminal 1 Port |
| 分类 |
商业参数
| 标准包装数量 | 500 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1 A |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 直径 | 13.2 mm | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 10 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 触点形式 | 10Signal |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Tin |
| 紧固类型 | Push-Pull | 安装样式 | Through Hole |
| 外壳材料（壳体） | Plastic | 触头材料 | Copper Alloy |
| 总长度 | 42 mm | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 配接方向 | Push-Pull |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | Mini DIN | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | PL |
| 系列 | HR12 | 已删除 | Compliant |
| 产品特性 | Shielded, Strain Relief | 主要用途 | Shielded, Strain Relief |
| 产品子类型 | Connectors | 射频系列/标准 | HR212 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55C to 85C | ||
