点击放大查看

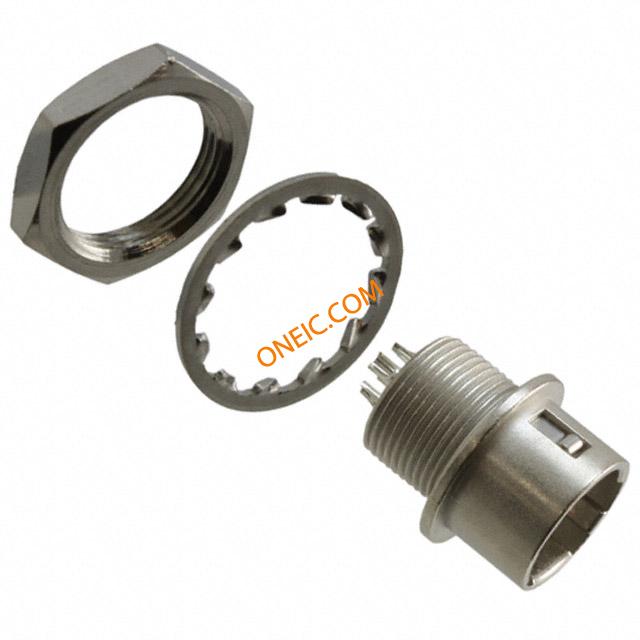

HR10A-7R-4P(73)
| 制造商 | |
| 描述 | Circular Push Pull Connectors 4P RECP SHELL SZ 7 MALE SIL TERM SOLDR 4 CONT. RECEPTACLE W/PIN INSERT 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull Conn Push-Pull M 4 POS Solder ST Panel Mount 4 Terminal 1 Port 4WMALERECEPTSOLDER Device connector 4-pin Poles=4, HR10A-7R-4P(73), Hirose |
| 分类 |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 150VAC | 极数 | 4 |
| 最大额定电流 | 2A | 额定电流 - 设备输入口 | 2 |
机械参数
| 深度 | 11 mm | 高度 | 10 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 7 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触点形式 | 4Signal | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 安装样式 | Panel | 外壳材料（壳体） | Metal |
| 连接器用途 | Push-Pull | 锁定特性 | Push-Pull |
| 触头材料 | Brass, Bronze | 壳体材料 | Metal |

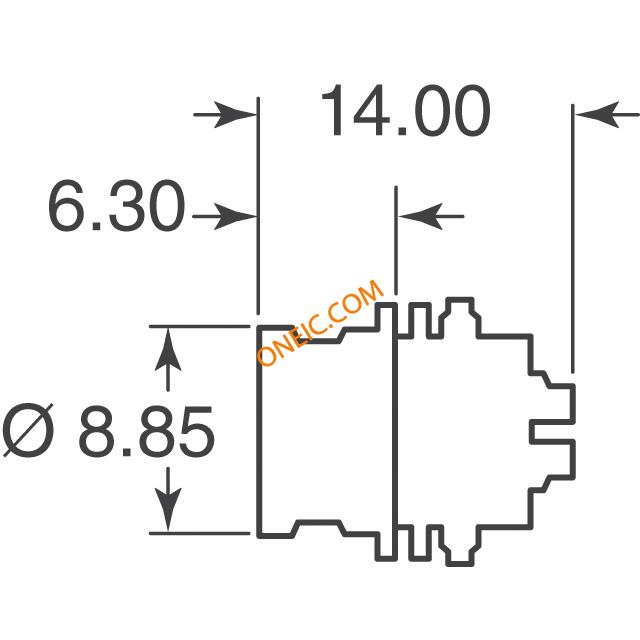

| 总长度 | 14 mm | 端接样式 | Solder |
| 第一触头极性 | Male | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 7 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Brass and Zinc, Nickel Plated |
产品信息
| 类型 | Push-Pull | 设计类型 | Panel-mount male receptacle |
| 连接器性别 | Female | 系列 | HR10 |
| 已删除 | Compliant | 产品子类型 | Connectors |
| 射频系列/标准 | HR10A | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 工作温度 | -25°C ~ 85°C | ||
