点击放大查看

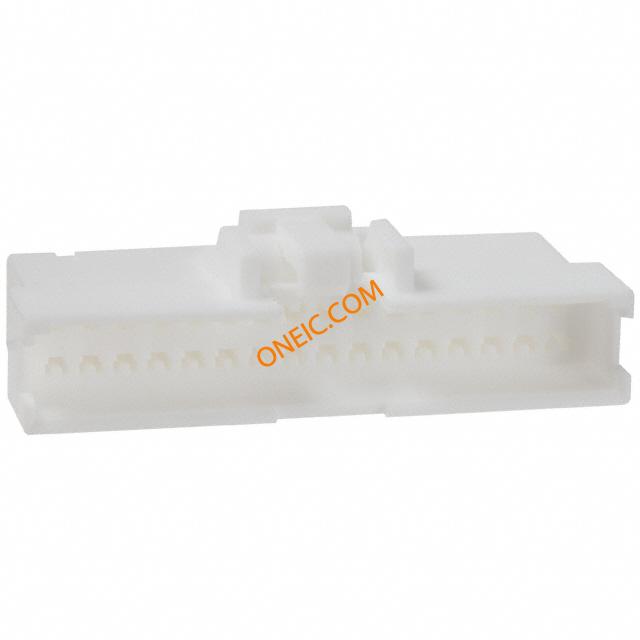

DF1B-32DEP-2.5RC
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング 2.5MM DOUBLE ROW 32P INLINE PLUG CONN PLUG HOUSING 32POS 2.5MM Headers & Wire Housings 2.5MM DOUBLE ROW 32P INLINE PLUG |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
| 绝缘电阻 | 1000 MOhms | 连接器类型 - 电压输入 | Crimp, IDC |
机械参数
| 颜色 | White | 间距 | 0.098" (2.50mm) |
| 包装方式 | Bulk | 排间距 | 0.098" (2.50mm) |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 引脚间距 | 0.098" (2.50mm) | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 排数 | 2 | 触头材料 | Phosphor Copper |
| 壳体材料 | Polyamide (PA) | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 32 |
| 接触件端接 | Crimp, IDC | 位数 | 32 |
产品信息
| 备注 | Contacts Not Provided | 系列 | DF1B |
| 产品子类型 | Plugs - Housings | 输出配置 | Free Hanging (In-Line) |
