点击放大查看

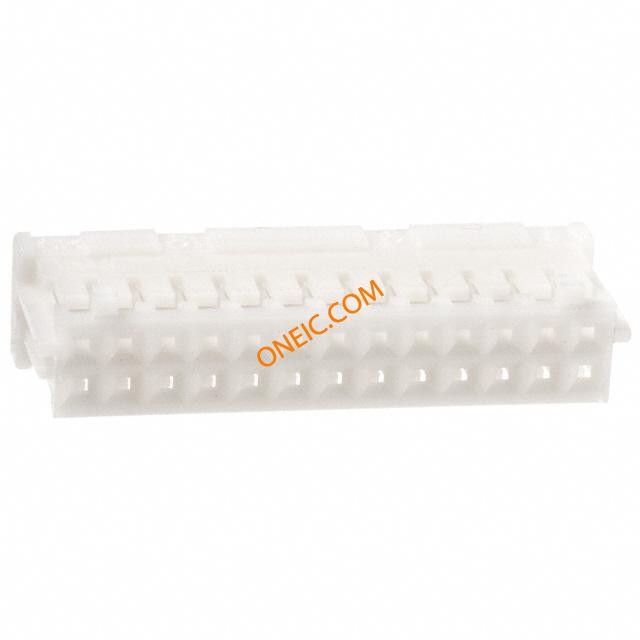

DF1B-26DS-2.5RC

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 2.5MM DOUBLE ROW SKT 26P HOUSING CONN RECEPT HOUSING 26POS 2.5MM Conn Housing PL 26 POS 2.5mm Crimp ST Cable Mount Bag
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	250 VAC	开关功能	Unlatched
最大额定电流	3 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp, IDC

机械参数

颜色	White	深度	11.5 mm
间距	0.098" (2.50mm)	高度	8 mm
包装方式	Bulk	排间距	0.098" (2.50mm)
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.098" (2.50mm)	外壳颜色	White
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
排数	2	壳体材料	Polyamide (PA)
总长度	35 mm	端接样式	Through Hole
第一触头极性	Socket (Female)	触点数	26
接触件端接	Crimp, IDC	位数	26

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	DF1B
已删除	Compliant	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-35C to 85C

文档与媒体

PDF 文档

DF1B Series

PDF 文档

e54102006.pdf
