点击放大查看

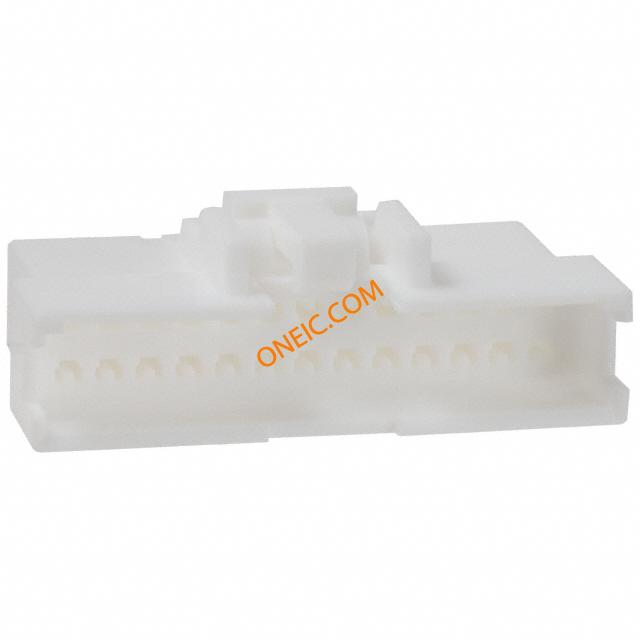

DF1B-26DEP-2.5RC
| 制造商 | |
| 描述 | Headers & Wire Housings 2.5MM DOUBLE ROW 26P INLINE PLUG CONN PLUG HOUSING 26POS 2.5MM Conn Housing RCP 26 POS 2.5mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
电气参数
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Crimp, IDC | ||
机械参数
| 颜色 | White | 深度 | 18.5 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 12.3 mm |
| 包装方式 | Bulk | 排间距 | 0.098" (2.50mm) |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 引脚间距 | 0.098" (2.50mm) | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 37.2 mm |
| 触点数 | 2 | 接触件端接 | Crimp, IDC |
| 位数 | 26 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | DF1B |
| 已删除 | Compliant | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -35C to 85C | ||
