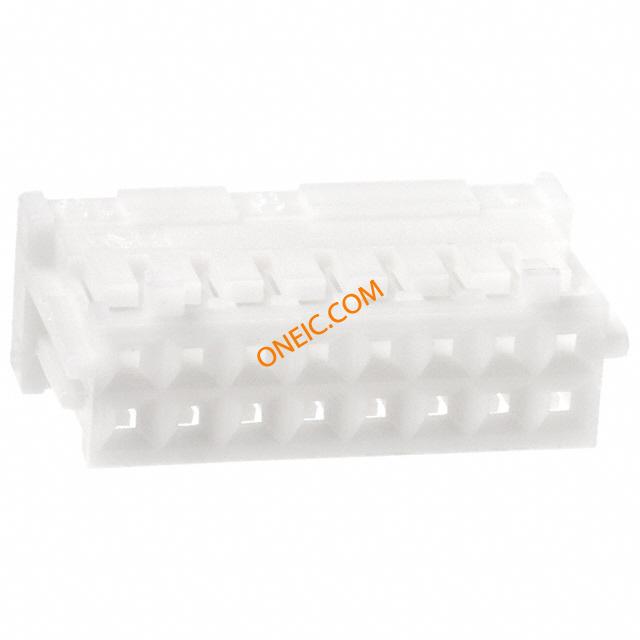

DF1B-16DS-2.5RC

制造商	Hirose Electric Co., Ltd.
描述	ヘッダ & ワイヤハウジング 2.5MM DOUBLE ROW SKT 16P HOUSING CONN RECEPT HOUSING 16POS 2.5MM Headers & Wire Housings 2.5MM DOUBLE ROW SKT 16P HOUSING Conn Housing PL 16 POS 2.5mm Crimp ST Cable Mount Bag
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	250 VAC	开关功能	Unlatched
最大额定电流	3 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp, IDC

机械参数

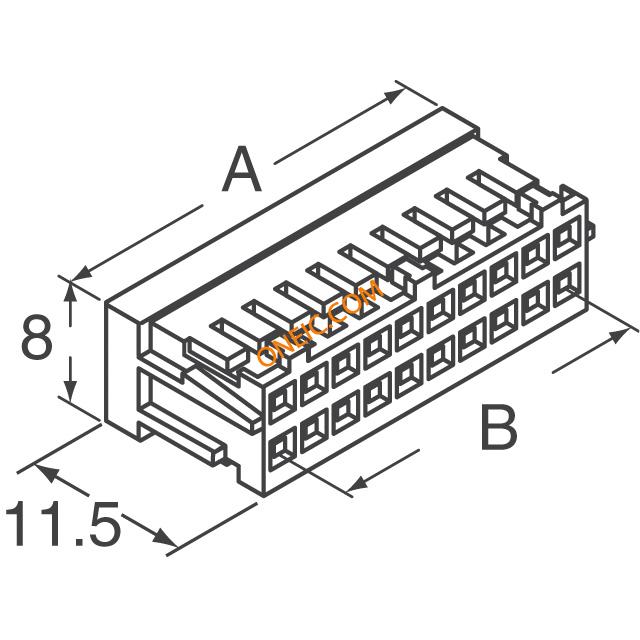

颜色	White	深度	11.5 mm
间距	0.098" (2.50mm)	高度	8 mm
包装方式	Bulk	排间距	0.098" (2.50mm)
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.098" (2.50mm)	外壳颜色	White
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
排数	2	壳体材料	Polyamide (PA)
总长度	22.5 mm	端接样式	Through Hole
第一触头极性	Socket (Female)	触点数	16
接触件端接	Crimp, IDC	位数	16

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	DF1B
已删除	Compliant	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-35C to 85C

文档与媒体

PDF 文档

DF1B Series

PDF 文档

e54102006.pdf

相关型号

DF1B-R24

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24 AWG TIN CONN SOCKET IDC 24AWG TIN DF1B-R24

¥0.1360

详情

DF1B-R26F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 26 AWG TIN CONN SOCKET IDC 26AWG TIN

¥0.3070

详情

DF1B-R28F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG TIN CONN SOCKET IDC 28AWG TIN

¥0.1360

详情

DF1B-R28FA

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 28AWG GOLD

详情

DF1B-R26A

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 26AWG GOLD

详情

DF1B-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング CRIMP FML CONTACT 24-28 AWG GOLD CONN SOCKET CRIMP 24-28AWG GOLD Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG GOLD DF1B-2428SCFA

¥0.4495

详情

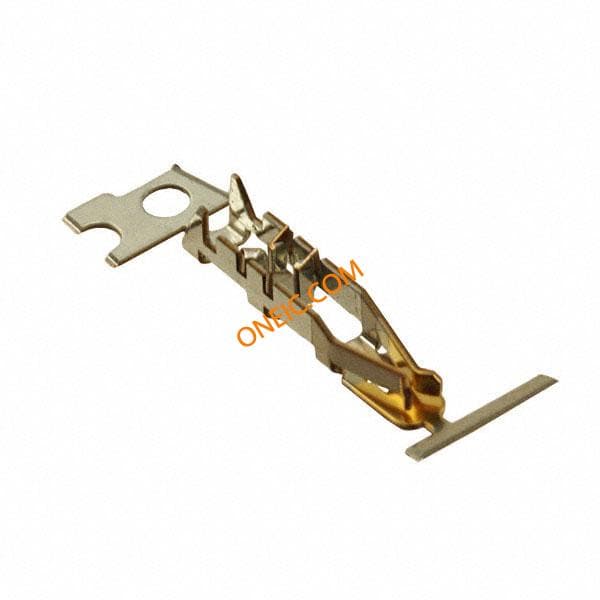

DF1B-R28FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG GOLD CONN SOCKET IDC 28AWG GOLD

¥0.5440

详情

DF1B-16DP-2.5DSA(01)

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM V DBL ROW HDR 16P THRU-HOLE GOLD CONN HEADER 16POS 2.5MM STR GOLD Headers & Wire Housings 2.5MM V DBL ROW HDR 16P THRU-HOLE GOLD Conn Shrouded Header HDR 16 POS 2.5mm Solder ST Thru-Hole Bag

¥3.5360

详情

DF1BA-16DEP-2.5RC

Hirose Connector

Headers & Wire Housings 2.5MM DBL ROW PLUG 16P INLINE PNL MNT CONN PLUG HOUSING 16POS 2.5MM

¥1.2074

详情

DF1BZ-16DP-2.5DS

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM RA DBL ROW HDR 16P THRU-HOLE TIN CONN HEADER 16POS 2.5MM R/A TIN Headers & Wire Housings 2.5MM RA DBL ROW HDR 16P THRU-HOLE TIN Conn Shrouded Header HDR 16 POS 2.5mm Solder RA Thru-Hole Bag

¥2.3868

详情

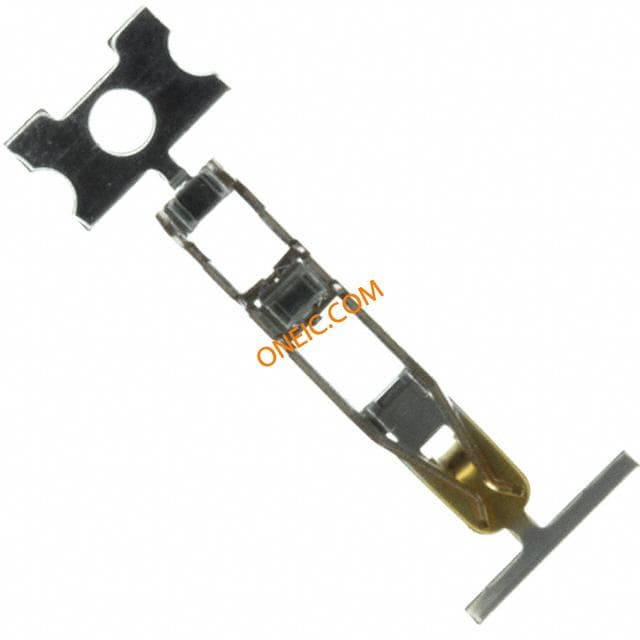

DF1B-R24FA(06)
