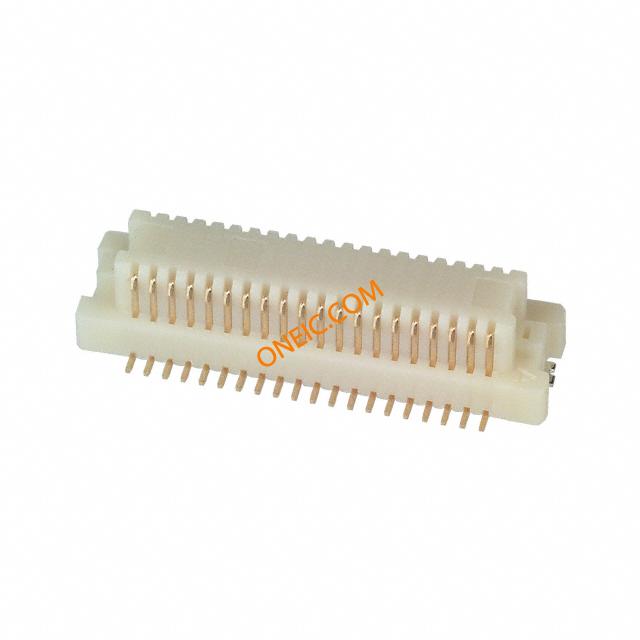

DF15(1.8)-40DS-0.65V(56)
| 制造商 | |
| 描述 | Board to Board & Mezzanine Connectors 40P REC 1.8MM HEIGHT W/FITTING AND BOSS CONN RECEPT 40POS 1.8MM DUAL SMD Conn Board to Board RCP 40 POS 0.65mm Solder ST SMD Embossed T/R |
| 分类 |
商业参数
| 其他名称 | H10431TR | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 接触电阻 | 50 mohm | 最大额定电流 | 0.3 A |
| 最小供电电压 | 50VAC | ||

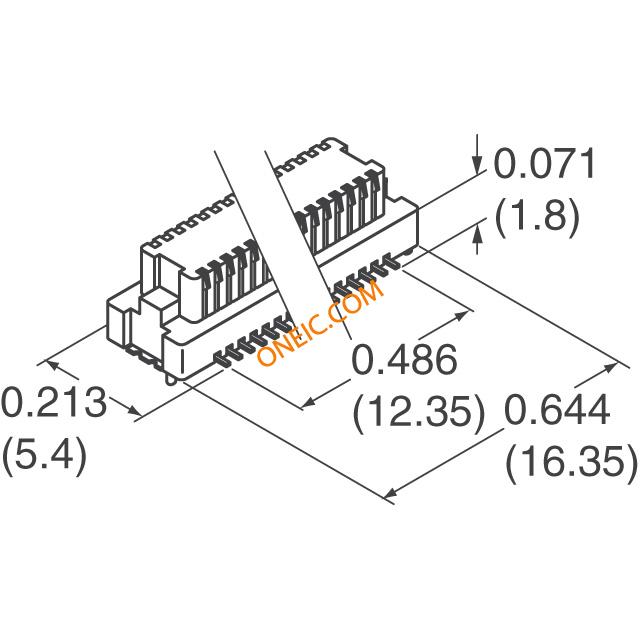

机械参数
| 深度 | 4.2 mm | 间距 | 0.026" (0.65mm) |
| 高度 | 4 mm | 包装方式 | Reel |
| 端接方式 | Solder | 外壳颜色 | Beige |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle, Center Strip Contacts |
| 接触镀层 | Gold | 安装样式 | Surface Mount |
| 排数 | 2 | 触头材料 | Phosphor Copper |
| 壳体材料 | Polyamide | 总长度 | 16.35 mm |
| 板面高度 | 0.157" (4.00mm) | 触点数 | 2 |
| 位数 | 40 | 安装高度（最大） | 0.157" (4.00mm) |
| 配接堆叠高度 | 5mm, 6mm, 8mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | RCP |
| 系列 | DF15 | 已删除 | Compliant |
| 产品特性 | Board Guide, Solder Retention | 主要用途 | Board Guide, Solder Retention |
| 产品子类型 | Receptacles | 输出配置 | Surface Mount |
环境参数
| 插拔次数 | 5mm, 6mm, 8mm | 机械寿命 | Obsolete |
| 工作温度 | -35C to 85C | ||
