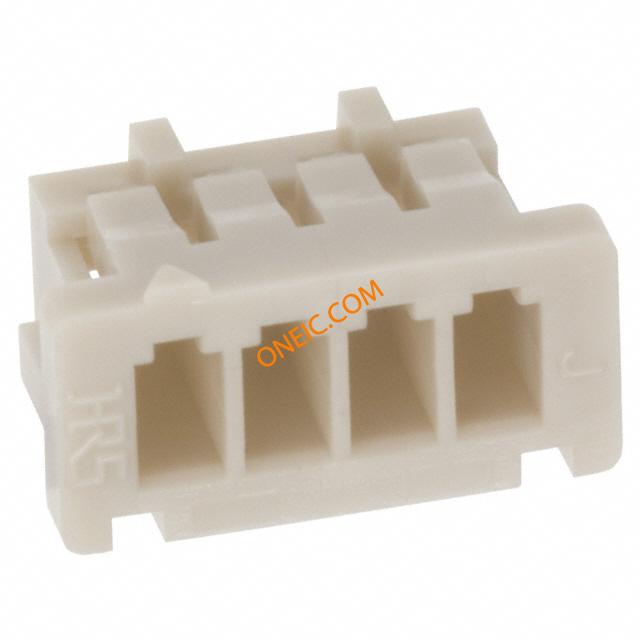

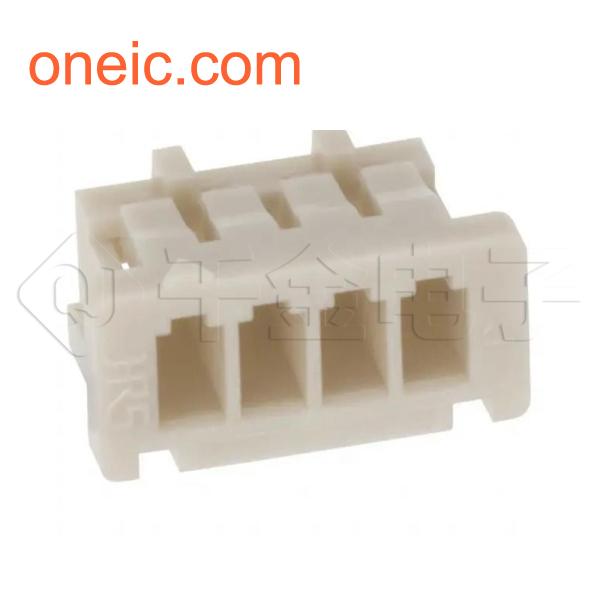

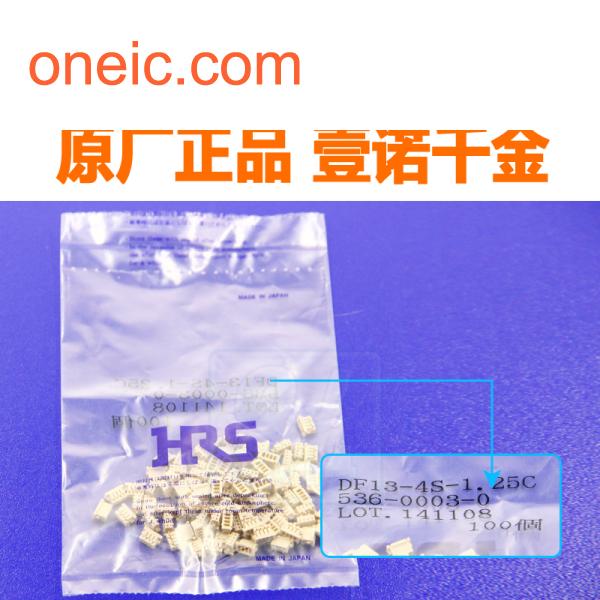

DF13-4S-1.25C

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 1.25MM RECEPT HSNG 4P SINGLE ROW CRIMP CONN SOCKET HOUSING 4POS 1.25MM DF13 socket housing, 1 row 4-way Conn Housing PL 4 POS 1.25mm Crimp ST Cable Mount Bag Crimp housing Pitch1.25 mm Poles 4 DF13, DF13-4S-1.25C, Hirose Hirose DF13 系列 1.25mm 节距 4 路直母电缆安装 PCB 壳体
分类	电容器铝电解电容器低阻抗铝电解电容器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	150 V	极数	4
最大额定电流	1 A	最小供电电压	150VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Beige	深度	4mm
间距	0.049" (1.25mm)	宽度	3.2mm
高度	3.2 mm	长度	6.65mm
包装方式	Bulk	壳体颜色	6.65
导线线规	26-30 AWG	方向	直
重量（g）	1.8	触点形式	Female Socket
触头类型	Female Socket	外壳颜色	Beige
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
安装样式	Wire	排数	1
壳体材料	PA	总长度	6.65 mm
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	4	接触件端接	Crimp
位数	4

产品信息

名称	塑壳	备注	Contacts Not Provided
类型	Housing	单位	PCS
连接器性别	Male	系列	DF13
已删除	Compliant	数量	20000.0
放大器类型	3.75	连接方式	Wire-Board
输出配置	Free Hanging (In-Line)	制造国家	日本
最小起订量	1	适用产品/相关产品	Miniature Crimping Connector

环境参数

工作温度

-35C to 85C
