点击放大查看

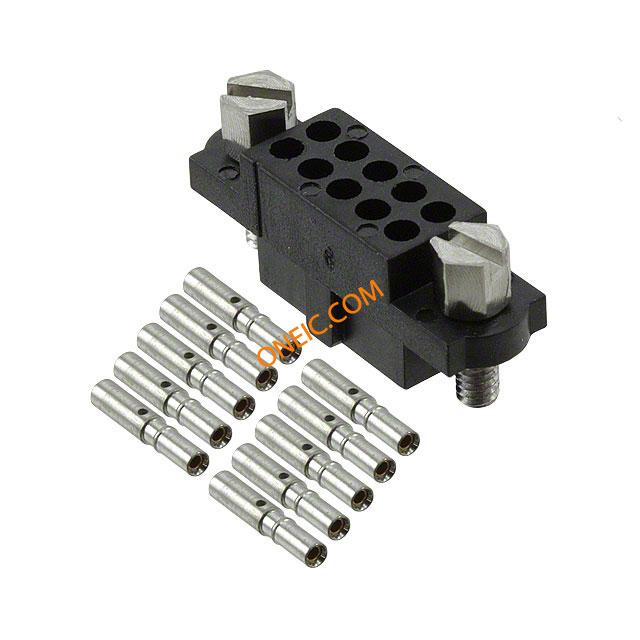

M80-4611042
| 制造商 | |
| 描述 | DIL FEMALE LARGE BORE CRIMP CONN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 电缆类型 | Discrete | 导线线规 | 24-28 AWG |
| 排间距 | 0.079" (2.00mm) | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.079" (2.00mm) |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 电缆端接方式 | Crimp | 位数 | 10 |
| 接触镀层厚度 | 12µin (0.30µm) | ||
产品信息
| 系列 | Datamate J-Tek | 产品特性 | Jackscrews |
| 主要用途 | Jackscrews | 输出配置 | Free Hanging (In-Line) |
