点击放大查看
19411060522
| 制造商 | |

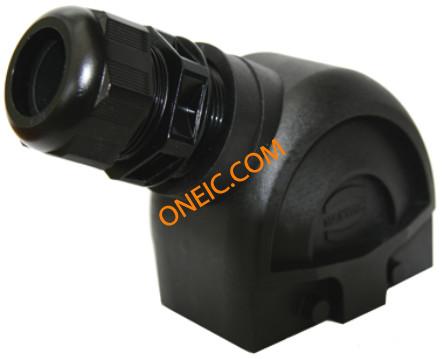

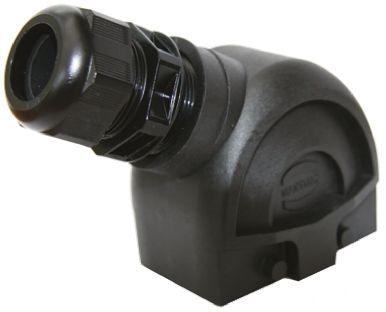

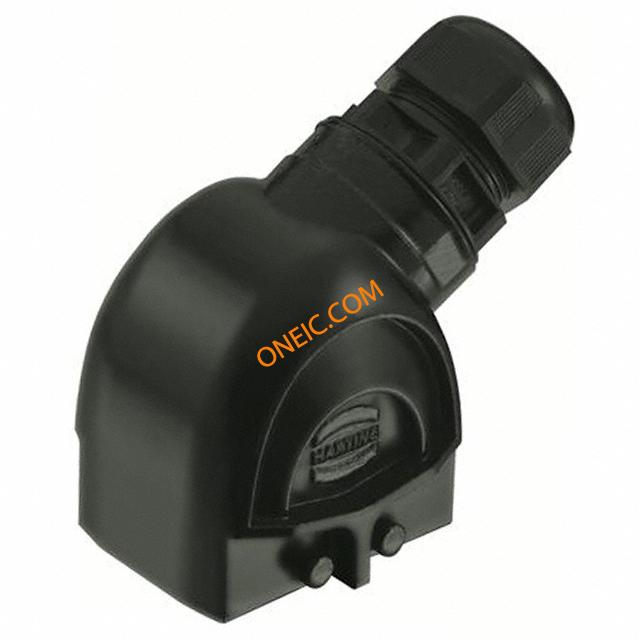

| 描述 | HAN-ECO 6B SE M32 CABLE GLAND M32 Side entry Hood with Gland 13 - 21mm Heavy Duty Power Connectors HAN ECO 6B SIDE ENT HOOD W/ CABLE GLAND SIDE ENTRY HOOD W/ GLAND, HAN-ECO, 6B, PLASTIC Hood;6B;M32;withCableGland;SideEntry;forHan-Eco;IP65 Enclosure: for HAN Modular connectors; Han Eco; size 6B; angled Han Ecoline Hoods: Han-Eco 24B Panel Mt Housing Harting Han Eco 系列 侧入 电源连接器外壳 |
| 分类 |
商业参数
| 其他名称 | 1195-3180 | 零件号别名 | 019 019-41-106-0522 0522 106 41 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
机械参数
| 尺寸 | 6B | 重量 | 0 |
| 包装方式 | Bulk | 出线方向 | :90° |
| 方向 | angled | 螺纹尺寸 | M32 |
| 重量（g） | 136.00000 | 外壳颜色 | Black |
| 衬套螺纹 | M32 | 电缆直径 | 13...21mm |
| 连接器类型 | Hood | 安装样式 | Side |
| 封装形式 | size 6B | 锁定特性 | :2 Lever |
| 本体材料 | :Glass Filled Polyamide | 总宽度 | 3 |
| 壳体材料 | Polyamide (PA), Nylon, Glass Filled | 包装数量 | 1 |
| 尺寸/外形 | 2.402" L x 2.244" W x 2.693" H (61.00mm x 57.00mm x 68.40mm) | 外壳尺寸-插件 | :6B |
| 供应商器件封装 | for HAN Modular connectors | 外壳与棱镜材料 | polyamide |
产品信息
| SPG | 1 | 样式 | Side Entry |
| 系列 | Han-Eco | 产品子类型 | Hoods |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | Side Entry Hood |
| 适配器系列 | Han Eco | 单元数量 | 1 |
| 加载位置数 | 2 | 适用产品/相关产品 | Heavy Duty Power Connector |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
