19340100521
| 制造商 | |
| 描述 | Heavy Duty Power Connectors HAN HvE SIDE ENTRY M25 HAN HVE HOOD SIDE ENTRY CONN HOOD SIDE ENTRY SZ24B M25 Harting HAN HV E 系列 侧入 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 010 019 019-34-010-0521 0521 34 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | 24B | 包装方式 | Bulk |
| 方向 | 侧入 | 螺纹尺寸 | M25 |
| 重量（g） | 220.00000 | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm) | 触点数 | 25 |
产品信息
| 类型 | 连接器护罩 | 样式 | Side Entry |
| 系列 | * | 产品子类型 | Hoods |
| 锁定位置 | Locking Clip on Base Bottom | 基础产品编号 | 1934 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
相关型号

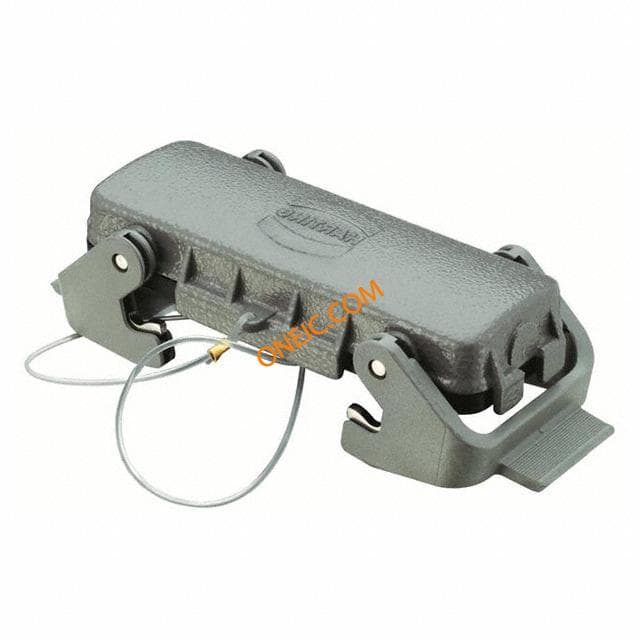

09300245422
