芯天下
19300101441

点击放大查看

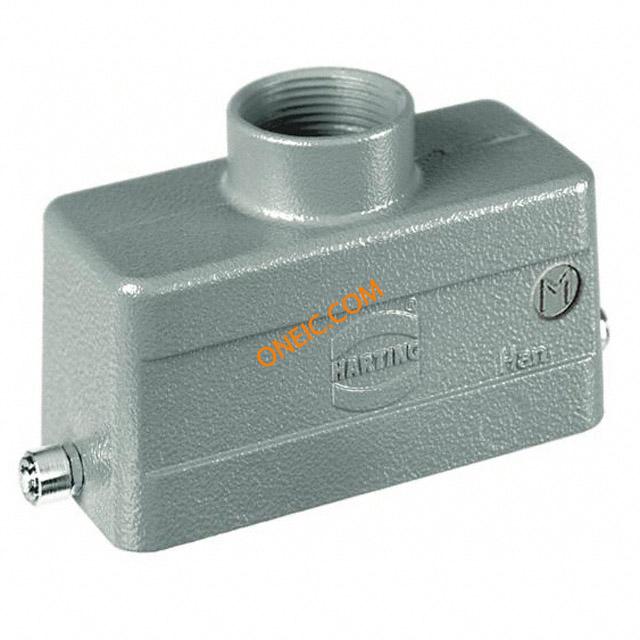

19300101441

制造商
HARTING Technology Group
描述
HAN B HOOD TOP LC 2 REELS M25 Heavy Duty Power Connectors METAL HOOD HAN 10B 1 LVR LCKING HAN 10B HOOD TOP ENTRY LC 2 PEGS M25 HAN10BHOODTOPENTRYLC2PEGSM25 Enclosure: for Han connectors; Han; size 10B; for cable; straight Standard Han B Hood, Top Entry, low construction, 2 Reels M25, size 10, 1 x 25 mts. Harting Han B 系列 顶入 电源连接器
分类
连接器解决方案重载连接器重载圆形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1195-3110零件号别名010 019 019-30-010-1441 1441 30
产品类别Heavy Duty Power Connectors标准包装数量1
工厂包装数量1

合规参数

RoHSCompliant

电气参数

频率Side Clip on Base Bottom

机械参数

尺寸10B重量0.12 kg
包装方式Bulk方向straight
螺纹尺寸M25外壳表面处理Powder Coated
外壳颜色Gray安装类型on cable
衬套螺纹M25连接器类型Hood
外壳涂层Powder Coated安装样式Straight
封装形式size 10B插入力Female
锁定特性for latch壳体材料Aluminum, Die Cast
包装数量5尺寸/外形2.858" L x 1.693" W x 2.303" H (72.60mm x 43.00mm x 58.50mm)
端接样式Cable触点数1
外部壳体颜色Gray供应商器件封装for Han connectors
外壳与棱镜材料aluminium alloy

产品信息

SPG5类型CONNECTORS
样式Top Entry系列Han B
产品子类型Hoods锁定位置Side Clip on Base Bottom
适配器系列Han单元数量1
基础产品编号1930

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
