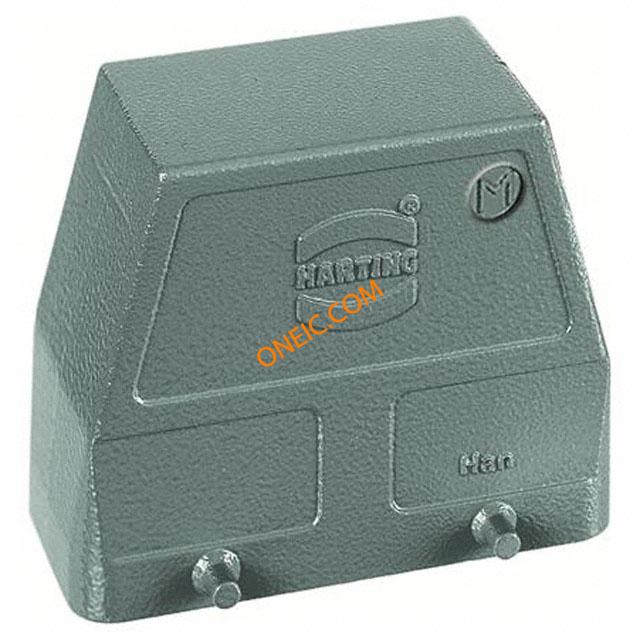

芯天下
19300100527

点击放大查看

19300100527

制造商
HARTING Technology Group
描述
HAN B HOOD SIDE HC 4 PEGS M32 Heavy Duty Power Connectors HAN 10B M32 SIDE METAL HOOD High type side entry hood,M32 size 10B HOOD, 10B, SIDE ENTRY, M32, HC HAN10BHOODSIDEENTRYHC4PEGSM32 Enclosure: for rectangular connectors; Han; size 10B; for cable Han B standard hood, side entry, size 10 B, high construction, 2 lever locking system. Harting Han B 系列 侧入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1195-3102零件号别名010 019 019-30-010-0527 0527 30
产品类别Heavy Duty Power Connectors标准包装数量1
工厂包装数量1

合规参数

RoHSCompliantSVHC:No SVHC (20-Jun-2013)
海关税号85369010

电气参数

工作电压:250V连接器类型 - 电压输入high

机械参数

尺寸10B宽度:57mm
长度:72mm重量0.16
材料（通用）:Metal包装方式Bulk
出线方向:Side方向angled
螺纹尺寸M32外壳颜色Gray
衬套螺纹M32连接器类型Hood
外壳涂层Powder Coated安装样式Side
封装形式size 10B插入力Female
锁定特性for double latch本体材料:Metal
壳体材料Aluminum, Die Cast包装数量2
尺寸/外形2.858" L x 1.693" W x 2.835" H (72.60mm x 43.00mm x 72.00mm)端接样式Cable
连接器颜色:Powder Coated, RAL 7037 Grey触点数1
外壳尺寸-插件:10B供应商器件封装for rectangular connectors
外壳与棱镜材料aluminium alloy

产品信息

SPG2样式Side Entry
系列Han BCAD图纸3D CAD Model
产品子类型Hoods锁定位置Locking Clip on Base Bottom
附件类型Hood适配器系列Han
单元数量1适用产品/相关产品:Standard Han Connectors

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
