点击放大查看

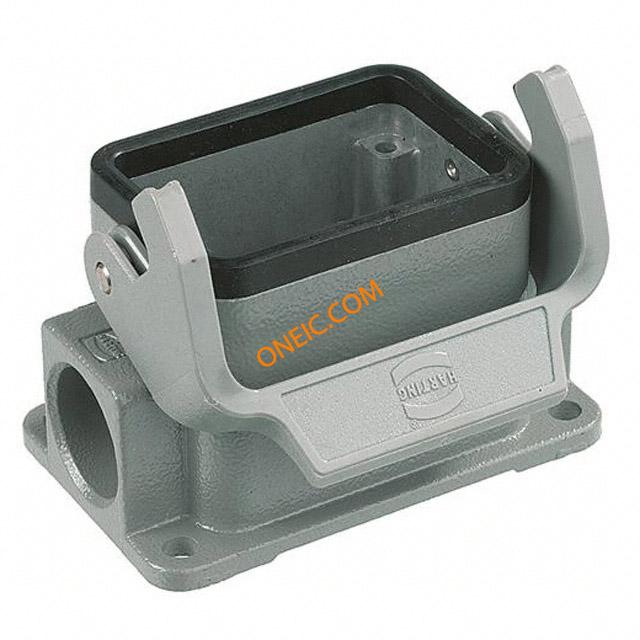

19300061290

制造商	HARTING Technology Group
描述	HAN B BASE SURFACE LC 1 LEVER Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 6B 2 SIDE ENTRY PANEL SOCKET HAN 6B 2 M20 PANELSOCKETHAN6B2M20 Han B Housings: Han B Base Surface LC 1 Lever 2 x M20 Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3092	零件号别名	006 019 019-30-006-1290 1290 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Compliant

电气参数

频率

Side Clip on Base Bottom

机械参数

尺寸	6B	包装方式	Bulk
螺纹尺寸	M20	外壳表面处理	Powder Coated
外壳颜色	Gray	连接器类型	Base - Box Mount
外壳涂层	Powder Coated	壳体材料	Aluminum, Die Cast
尺寸/外形	3.228" L x 2.047" W x 2.028" H (82.00mm x 52.00mm x 51.50mm)	端接样式	Screw
外部壳体颜色	Gray

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han B	产品特性	Feed Through
CAD图纸	3D CAD Model	主要用途	Feed Through
产品子类型	Receptacle Housings	锁定位置	Side Clip on Base Bottom
附件类型	Housings

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
