点击放大查看

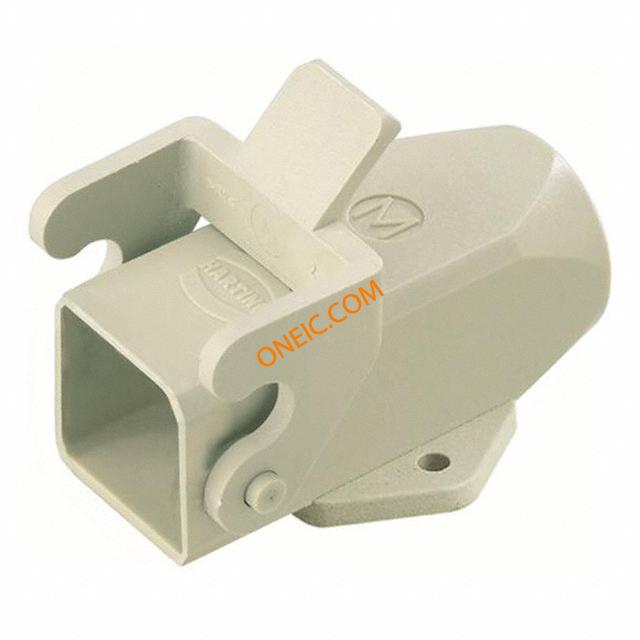

19200030220

制造商	HARTING Technology Group
描述	HAN A BASE SURFACE THERMO M20 Heavy Duty Power Connectors SURFACE MOUNTING HSG OPEN 1 SIDE ENTRY PANEL SOCKET HAN 3A PLASTIQUE M20 HANABASESURFACETHERMOPLASTICM20 Enclosure: for Han connectors; Han; size 3A; with lock; side; M20 Han A Housings: Han A Base Surface Thermoplastic M20 Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3058	零件号别名	003 019 019-20-003-0220 0220 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

side

机械参数

尺寸	3A	重量	0.02 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	螺纹尺寸	M20
外壳颜色	Gray	衬套螺纹	M20
连接器类型	Base - Panel Mount 90°	安装样式	flange (2 holes), for panel mounting, for cable
封装形式	size 3A	锁定特性	with lock
壳体材料	Polyamide (PA), Nylon	包装数量	10
尺寸/外形	1.102" L x 1.575" W x 1.055" H (28.00mm x 40.00mm x 26.80mm)	端接样式	Screw
供应商器件封装	for Han connectors	外壳与棱镜材料	polycarbonate

产品信息

SPG	10	类型	CONNECTORS
样式	Side Entry	系列	Han A
CAD图纸	3D CAD Model	产品子类型	Receptacle Housings
锁定位置	Central Locking Clip on Base Bottom	附件类型	Housings
适配器系列	Han	单元数量	1

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C
