点击放大查看
11126001402
| 制造商 | |

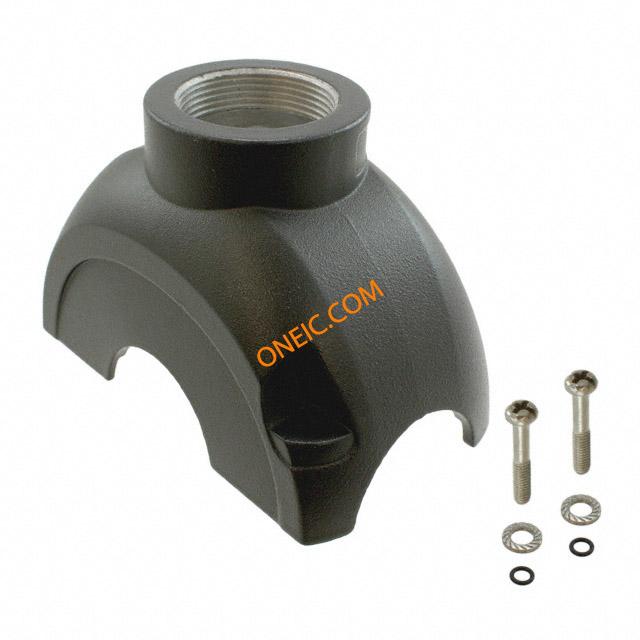

| 描述 | HAN-YELLOCK SHELL TOP M32 Heavy Duty Power Connectors TOP ENTRY HOOD SHELL M32 BLK HOUSING Hood,Shell;Size60;M32;TopEntry;forHan-Yellock60;Aluminium Han-Yellock Hoods: Han-Yellock shell top entry M32 Harting Han-Yellock 系列 顶入 电源连接器 |
| 分类 |
商业参数
| 其他名称 | 1195-2993 | 零件号别名 | 011 011-12-600-1402 12 1402 600 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | 顶入 |
| 螺纹尺寸 | M32 | 连接器类型 | Hood - Shell |
| 外壳涂层 | Epoxy Powder Paint | 安装样式 | Straight |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 3.972" L x 2.205" W x 2.673" H (100.89mm x 56.00mm x 67.90mm) |
产品信息
| 类型 | CONNECTORS | 样式 | Top Entry |
| 系列 | Han Yellock 60 | 产品子类型 | Hoods |
| 锁定位置 | Push Button Snap Lock on Hood Carrier | 基础产品编号 | 1112600 |
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
相关型号
19000005094
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 CABLE DIA 13-20 mm CBL CLAMP M32 13-20MM BRASS IP68 Cable Clamp (M32) 13-20mm Brass IP-68 CABLE CLAMP, M32, 13-20MM CableClamp(M32)13-20mmBrassIP-68 Gland; M32; IP68; Dcable:13÷20mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 13-20mm, brass, IP 68
19000005096
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 IP68 CABLE 18-25mm CBL CLAMP M32 18-25MMBRASS IP68 Cable Entry Protection; Metal; M32; 18-25mm Cable Diameter CABLE CLAMP, M32, 18-25MM CableEntryProtection,Metal,M32,18-25mmCableDiameter Gland; M32; IP68; Dcable:18÷25mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 18-25mm,brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 18mm 至 25mm电缆直径, -40°C至+125°C, M32螺纹
11126000100
Harting
HAN-YELLOCK CARRIER HOOD Heavy Duty Power Connectors CARRIER HOOD 60 BLK M25 TOP ENTRY LOCK Hood,Carrier;Size60;6Mod;forHan-Yellock60;ZincDie-Cast;w/PlainButton Han-Yellock Hoods: Han-Yellock carrier hood 60 plain butten
11126000110
Harting
HAN-YELLOCK CARRIER HOOD Heavy Duty Power Connectors HAN-YELLOCK CARRIER HOOD60 GROOVE BUTTEN Hood,Carrier;Size60;6Mod;forHan-Yellock60;ZincDie-Cast;w/PushButton Han-Yellock Hoods: Han-Yellock carrier hood60 groove butten Harting Han-Yellock 系列 外罩
