点击放大查看

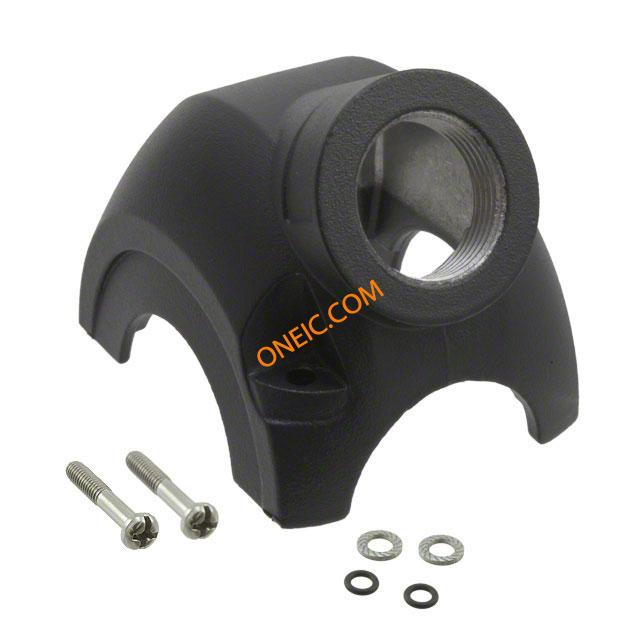

11123001501
| 制造商 | |
| 描述 | HAN-YELLOCK SIDE M25 Hood shell side entry M25 Heavy Duty Power Connectors Hood Size 30 Side Entry M25 HAN-YellockHoodSideEntryM25 Han-Yellock Hoods: Han-Yellock side entry M25 Harting Han Yellock 系列 侧入 电源连接器 |
| 分类 |
商业参数
| 商标名 | YELLOCK, HAN-YELLOCK | 其他名称 | 1195-2985 |
| 零件号别名 | 011 011-12-300-1501 12 1501 300 | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | 侧入 |
| 螺纹尺寸 | M25 | 外壳颜色 | Gray |
| 连接器类型 | Hood - Shell | 外壳涂层 | Epoxy Powder Paint |
| 安装样式 | Side | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 2.862" L x 2.205" W x 2.496" H (72.70mm x 56.00mm x 63.40mm) | ||
产品信息
| 类型 | CONNECTORS | 样式 | Side Entry |
| 系列 | Han-Yellock | 挂钩类型 | HAN-YellockHoodSideEntryM25 |
| 产品子类型 | Backshells | 锁定位置 | Push Button Snap Lock on Hood Carrier |
| 附件类型 | Side Entry Hood | 基础产品编号 | 1112 |
| 适用产品/相关产品 | Heavy Duty Power Connector | ||
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
相关型号
19000005092
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M25 BRASS 13-18mm CAB DIA IP68 CBL CLAMP M25 13-18MM BRASS IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CBLCLAMPM2513-18MMBRASSIP68 Cable Glands metal: Cable clamp M25, 13-18mm, brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 13mm 至 18mm电缆直径, -40°C至+125°C, M25螺纹
19000005190
Harting Technology Group
CABLE GLAND PLASTIC Heavy Duty Power Connectors Cable Clamp M25 IP68 9-16mm Plastic CBL CLAMP M25 9-16MM PLAST IP68 CABLECLAMPM25,9-16MM,PLASTIC,IP68 Gland; M25; IP68; Dcable:9÷16mm; Mat: thermoplastic; Spanner:33mm Harting IP68 灰色 热塑塑料 电缆固定头 , 9mm 至 16mm电缆直径, -40°C至+125°C, M25螺纹
19000005090
Harting
CBL CLAMP M25 9-16 BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M25 BRASS 9-16mm CABL DIA IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CABLE CLAMP, M25, 9-16MM Gland,Cable;Metal;M25x1.5;26mm;30mm Gland; M25; IP68; 9÷16mm; Mat: metal Cable Glands metal: Cable clamp M25, 9-16, brass, IP 68

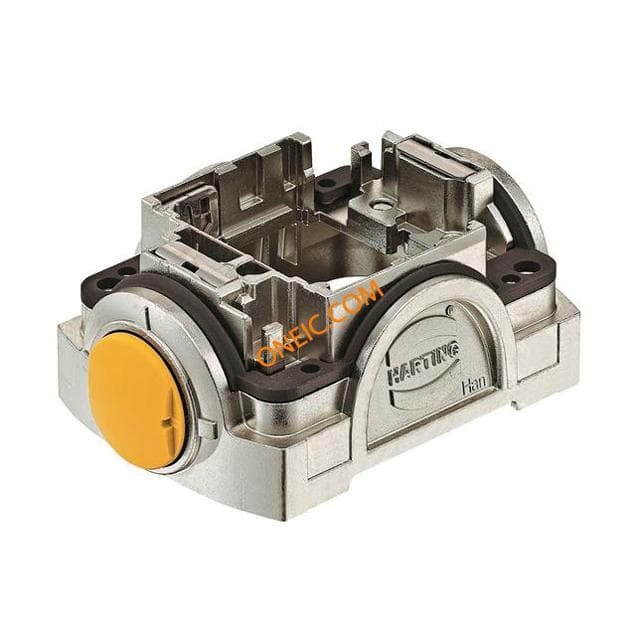

11123000100
Harting
HAN-YELLOCK CARRIER HOOD Carrier hood plain push button Heavy Duty Power Connectors Carrier Hood Size 30 Plain Push Button HAN-YellockCarrierHoodPlainPushButton Han-Yellock Hoods: Han-Yellock carrier hood 30 plain button

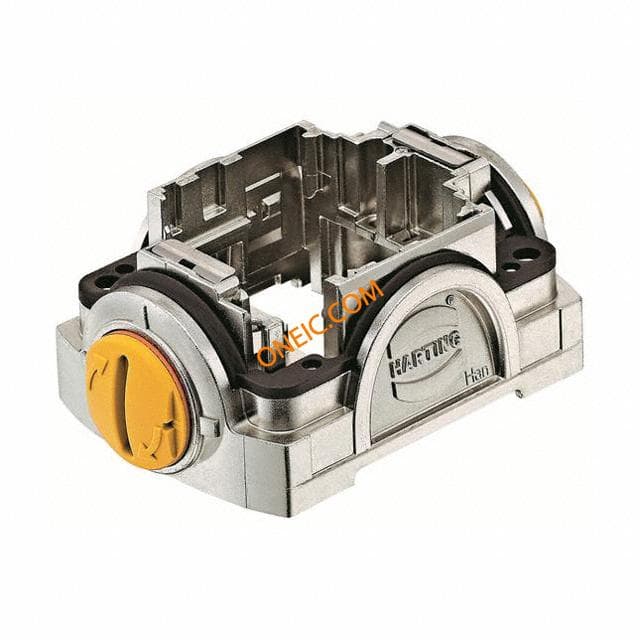

11123000110
