点击放大查看

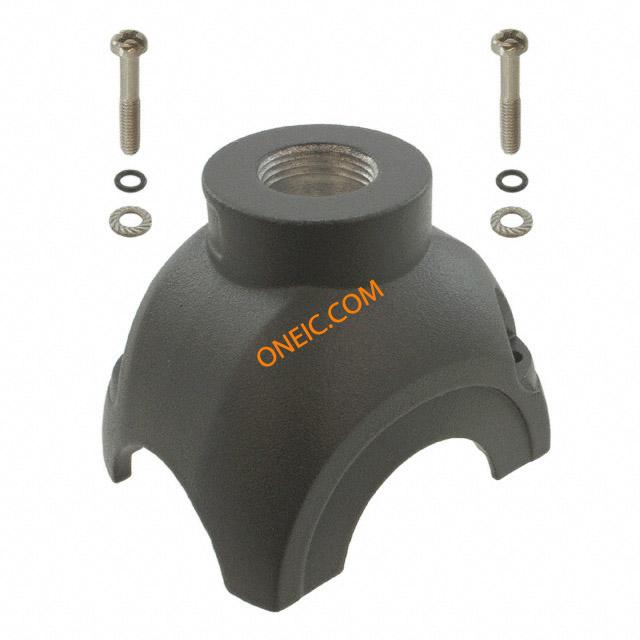

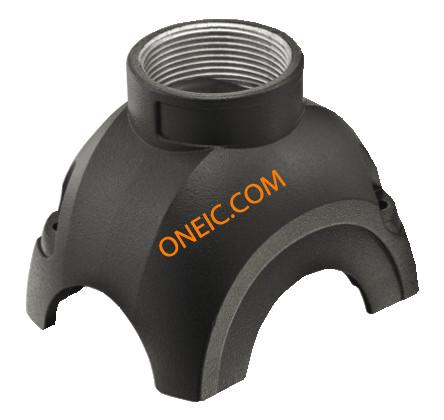

11123001400
| 制造商 | |
| 描述 | HAN-YELLOCK SHELL TOP M20 Hood shell top entry M20 Heavy Duty Power Connectors Hood Size 30 Top Entry M20 HAN-YellockHoodTopEntryM20 Han-Yellock Hoods: Han-Yellock shell top entry M20 Harting Han Yellock 系列 顶入 电源连接器 |
| 分类 |
商业参数
| 商标名 | YELLOCK, HAN-YELLOCK | 其他名称 | 1195-2981 |
| 零件号别名 | 011 011-12-300-1400 12 1400 300 | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | 顶入 |
| 螺纹尺寸 | M20 | 外壳颜色 | Gray |
| 连接器类型 | Hood - Shell | 外壳涂层 | Epoxy Powder Paint |
| 安装样式 | Straight | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 2.862" L x 2.205" W x 2.370" H (72.70mm x 56.00mm x 60.20mm) | ||
产品信息
| 类型 | CONNECTORS | 样式 | Top Entry |
| 系列 | Han-Yellock | 挂钩类型 | HAN-YellockHoodTopEntryM20 |
| 产品子类型 | Backshells | 锁定位置 | Push Button Snap Lock on Hood Carrier |
| 附件类型 | Top Entry Hood | 基础产品编号 | 1112 |
| 适用产品/相关产品 | Heavy Duty Power Connector | ||
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
