11051052633
| 制造商 | |

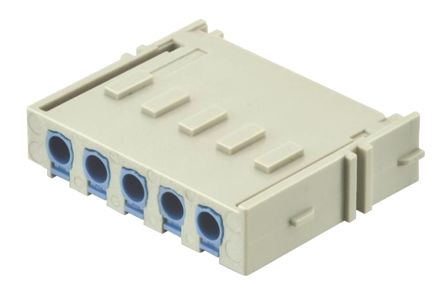

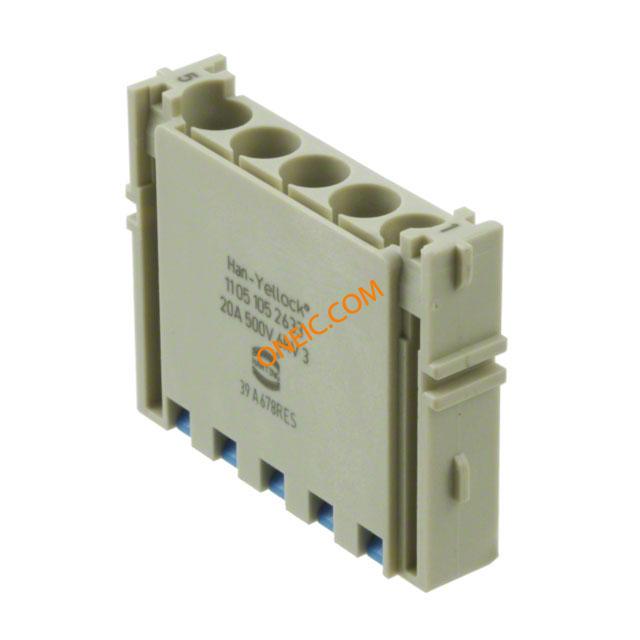

| 描述 | HAN YELLOCK MODULE QL 20A Heavy Duty Power Connectors Han Yellock Module QL 20A Conn;Rect;Indust;InsertPlug;5Cnts;Han-Yellock;20-14AWG Han-Yellock Male Module: Han Yellock Module QL 20A Harting Han-Yellock 系列 1行 5针 插头 电源连接器 |
| 分类 |
商业参数
| 其他名称 | 1195-2970 | 零件号别名 | 011 011-05-105-2633 05 105 2633 |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 500V | 最大额定电流 | 20A |
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 方向 | 直 | 连接器类型 | Module |
| 接触镀层 | Silver | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC) |
| 端接排数 | 快速锁定 | 端接样式 | Push In with Lock |
| 触点数 | 5 | 位数 | 5 |
产品信息
| 类型 | CONNECTORS | 连接器性别 | Male |
| 系列 | Han-Yellock | 基础产品编号 | 11051 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
