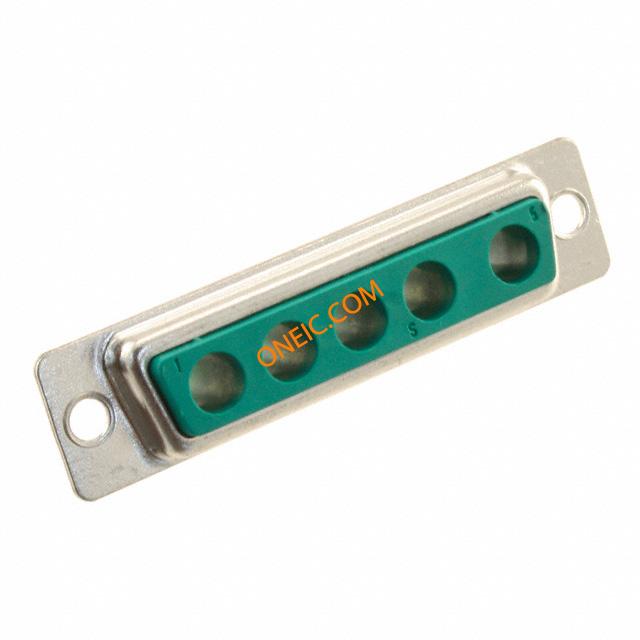

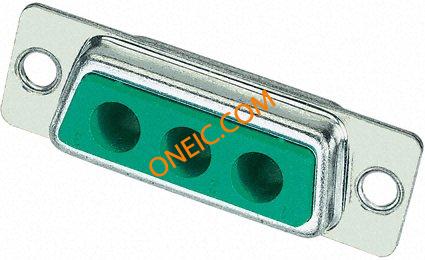

09693000055
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors 5P FML SHELL 5W5 5 SIGNAL THRU HOLE DSUB FE 5W5 SHELL W/O CONTACTS D-Sub Mixed Connector 5W5 F D-SubMixedConnector5W5F Harting 电缆安装 5（功率/同轴） 路 混合焊接 D-sub 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 0055 09 09-69-300-0055 300 69 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 深度 | 12.6mm | 宽度 | 12.5mm |
| 长度 | 53mm | 包装方式 | Bulk |
| 外壳尺寸 | B | 方向 | 直 |
| 触头类型 | Coax or Power | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, Combo | 壳体材料 | Steel |
| 尺寸/外形 | 53 x 12.5 x 12.6mm | 端接样式 | Solder |
| 触点数 | 5 | 介电材料 | Polyester, Glass Filled |
| 位数 | 5 (Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 5W5 | 外壳尺寸，连接器布局 | 3 (DB, B) - 5W5 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
