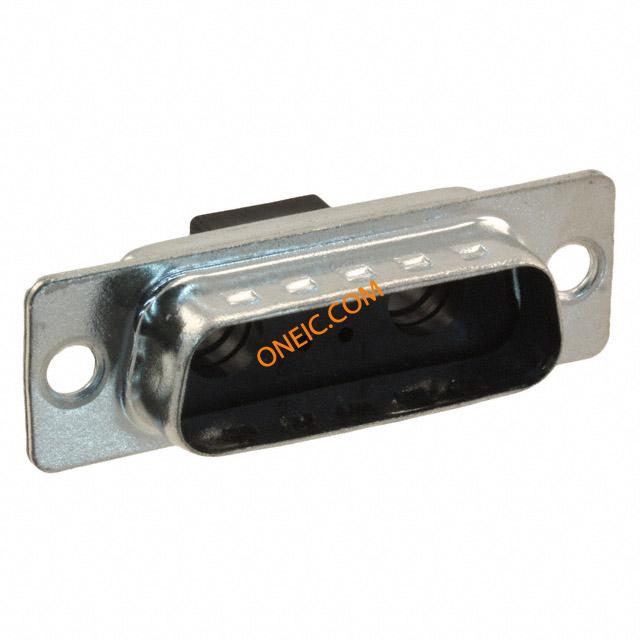

点击放大查看
09692120072
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors DSUB ML 7W2 CRIMP INSULATOR DSUB MA 7W2 CRIMP INSULATOR D-Sub Mixed Connector 7W2 M D-SubMixedConnector7W2M |
| 分类 |
商业参数
| 零件号别名 | 0072 09 09-69-212-0072 212 69 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 深度 | 16.7mm | 宽度 | 12.5mm |
| 长度 | 39.1mm | 包装方式 | Bulk |
| 触头类型 | Coax or Power and Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 2 | 连接器样式 | D-Sub, Combo |
| 壳体材料 | Steel | 尺寸/外形 | 39.1 x 12.5 x 16.7mm |
| 触点数 | 7 | 介电材料 | Polyester, Glass Filled |
| 位数 | 7 (5 + 2 Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) - 7W2 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
09692817230
HARTING
D-Sub Contacts MALE COAX CNT 75 OHM SLDR/CRIMP RG179/187 MALE COAXIAL CONTACT , 75 OHMS , STRAIGHT CABLE TERMINATION D SUB MIXED MA S CRIMP COAX 75 H
09692020072
HARTING
D-Sub Mixed Contact Connectors DSUB FE 7W2 CRIMP INS DSUB FE 7W2 CRIMP INSULATOR D-Sub Mixed Connector 7W2 F D-SubMixedConnector7W2F Harting 2（功率/同轴），5（信号）路 直 混合压接 D-Sub 连接器, 插座
09692825230
HARTING
D-Sub Contacts DSUB ML STR CRIMP CONT 75 OHMS COAX DSUB MA STR CRIMP CONTACT COAX Harting D-Sub Mixed系列 公 压接 同轴 D-Sub 连接器同轴触点, 镀金 触点, 24 AWG、26 AWG、28 AWG、30 AWG 0969
09692827232
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED ML CRIMP CRIMP COAX 75 OHMS D SUB MIXED MA CRIMP/CRIMP COAX

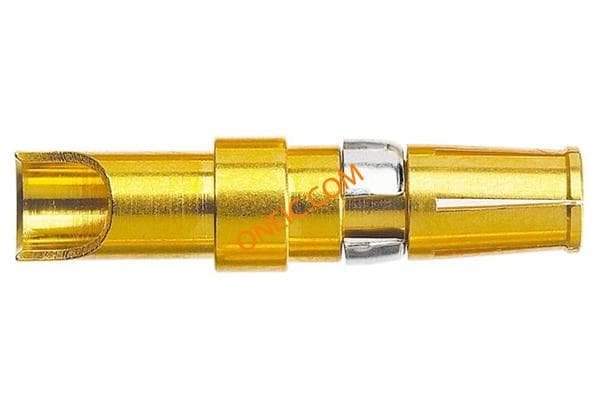

09692825422
HARTING
D-Sub Contacts DSUB MA STR 30A PWR CRIMP CONTACT DSUB MA STR CRIMP CONT 30A POWER
09692825823
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED ML 40A SHORT CRIMP POWER CO D SUB MIXED MA 40 A SHORT CRIMP

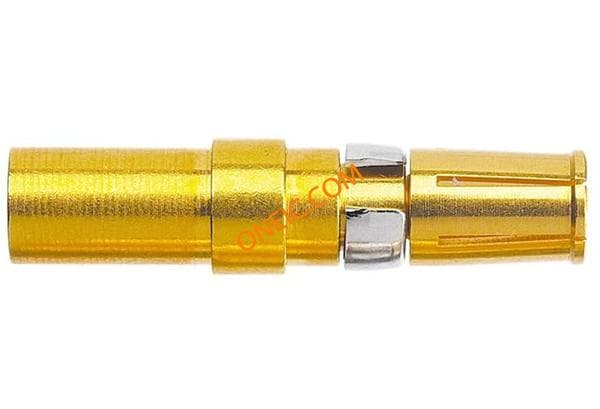

09692815423
